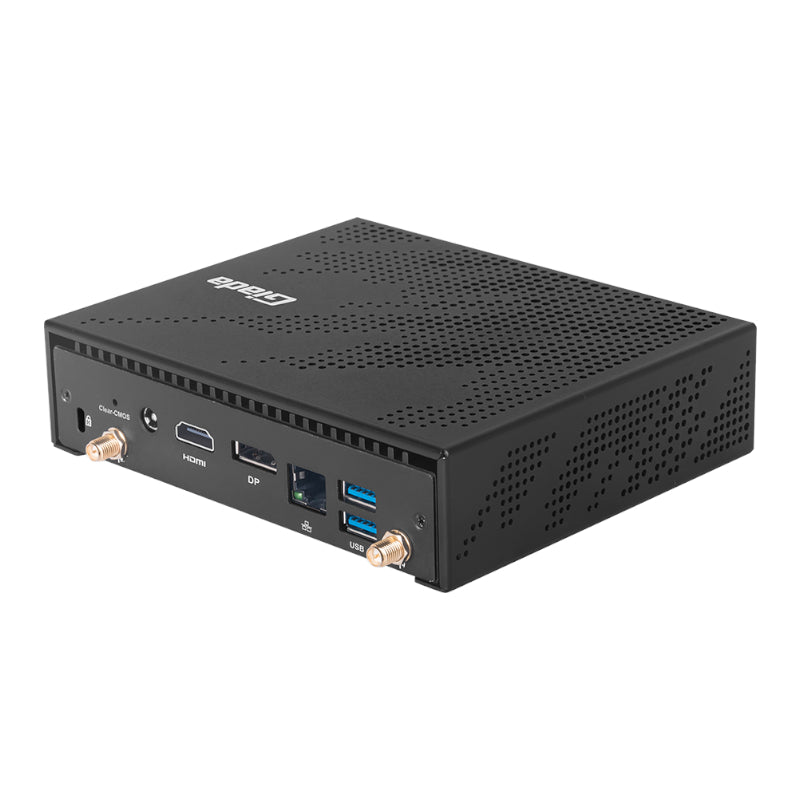

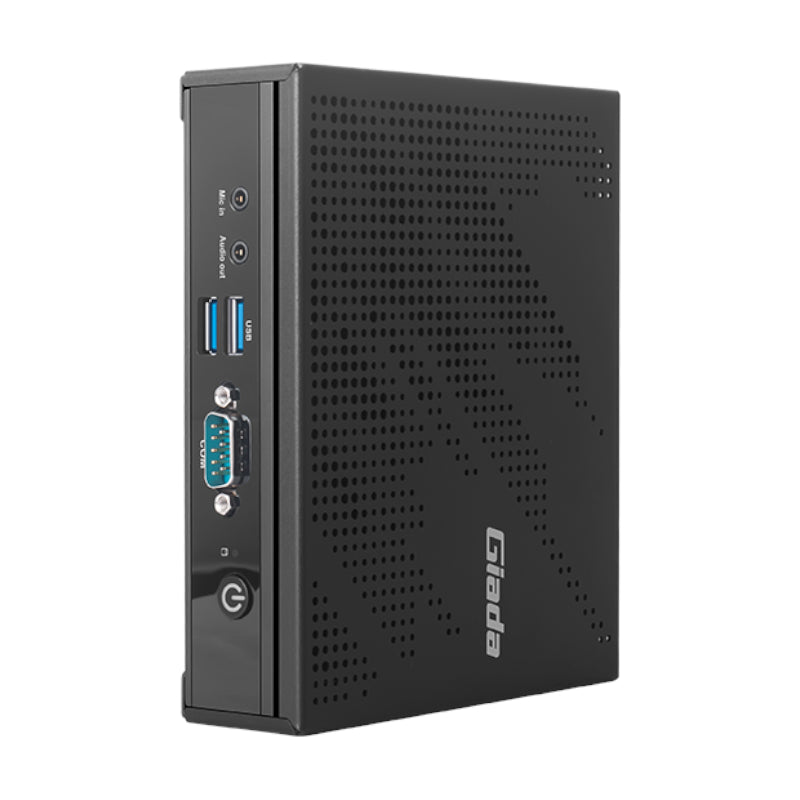

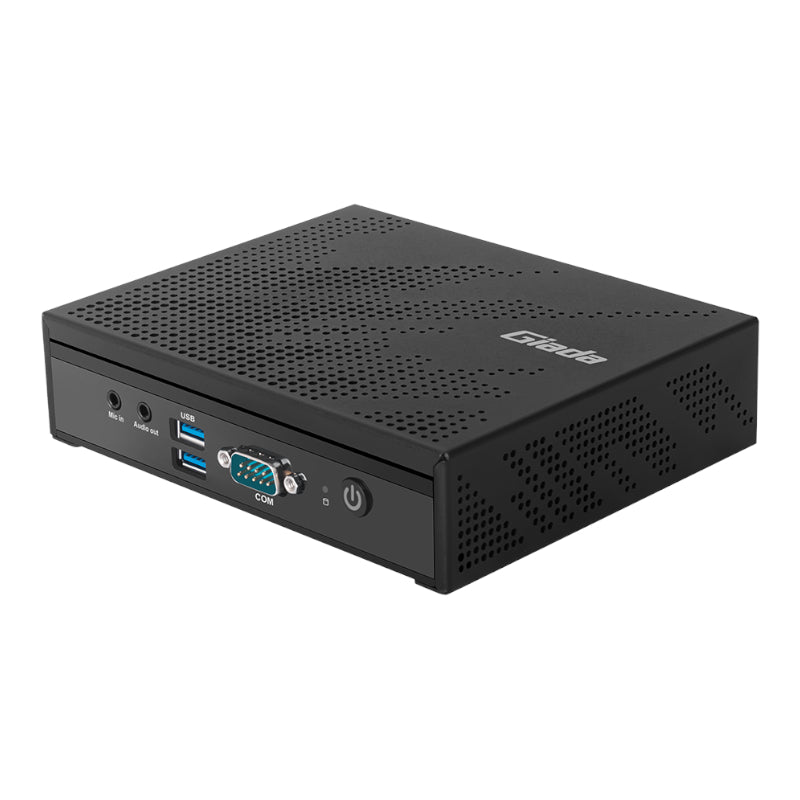

Giada VM27 with N6210 4G DDR4 on board, 64G EMMC on board

The Giada VM27 is based on Intel® IOTG roadmap with 7+ years lifespan. It supports Pentium® quad-core N6415 and Celeron® dual-core N6210 processors. The onboard dual-channel LPDDR4 and eMMC5.1 storage ensure its stable operating in harsh environments. The player adopts Intel® UHD Graphics for 10th Gen Intel® Processors and it has up to 2x performance improvement in graphics over previous generation. It supports vivid dual 1080p video or one 4K video decoding. Its HDMI 2.0a and DisplayPort 1.2 ports can also support resolutions up to 4096 x 2160@60Hz. With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device running with noise-free and dustproof. It enables this Giada® device applicable in mission critical applications.

FEATURES:

• Intel® Celeron® N6210 Processor


• 1 x DP, 1 x HDMI, Supporting 4K Display


• Onboard DDR4 4GB


• 1 x RJ45 Gigabit LAN and 1 x E-Key M.2 (2230) for WiFi/BT


• Long life cycle


• Fanless Design

SPECIFICATIONS:

• Processor:



  • CPU: Intel® Celeron N6210


  • Frequency: 2.60 GHz


  • Cores: 2


  • Chipset: SoC






• Memory:



  • Type: DDR4-2666 MHz


  • Socket: Onboard


  • Size: 4GB






• Storage:



  • Socket: 1 x Full-size Mini-PCIe for MSATA


  • Onboard: 64GB, Onboard eMMC5.1






•  Graphics:



  • GPU: Intel® UHD Graphics


  • Graphic Engine: DirectX 12.1, OpenGL 3.0, OpenCL 1.1, Intel® Quick Sync Video


  • DisplayPort: 1 x DP (Max.4096 x 2160 @60 Hz)


  • HDMI: 1 x HDMI (Max.4096 x 2160@60Hz)






• Network:



  • Controller: Realtek RTL 8111H Gigabit Ethernet


  • Interface: 1 x RJ45


  • Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6


  • Mobile Network: NA






• I/O:



  • USB: 4x USB 3.2 (10Gbps)


  • Serial Port: 1 x RS232


  • Audio: 1 x MIC-IN, 1 x AUDIO-OUT


  • Antenna: 2 x Connector for Wi-Fi/BT


  • Button: 1 x Power on, 1 x CLR-CMOS






• System:



  • TPM: FTPM


  • Watchdog Timer: Yes


  • Auto Power on: Yes


  • RTC: Set up independently every day


  • Remo on: Yes


  • Fanless: Yes






• Operation System:



  • Windows: Windows 10 (64Bit), Windows 11 (64bit)


  • Linux: Linux Ubuntu (64bit)






• Power:



  • Power Type: DC-IN


  • Input Voltage: 19V/2.37A






• Environment:



  • Operating Temperature: 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow


  • Relative Humidity: 95% @ 45°C (non-condensing)






• Certification: CE, FCC Class B


• Construction: Metal


• Fanless: Yes


• Colour: Black


• Dimensions: 15.4 x 12.5 x 4 cm

WHAT'S IN THE BOX:

• Giada VM27 Intel Celeron Ultra-compact Fanless Signage Player – Black x1


• WiFi Antenna x2


• AC Power Adapter x1


• Power Cable x1


• User Manual x1
