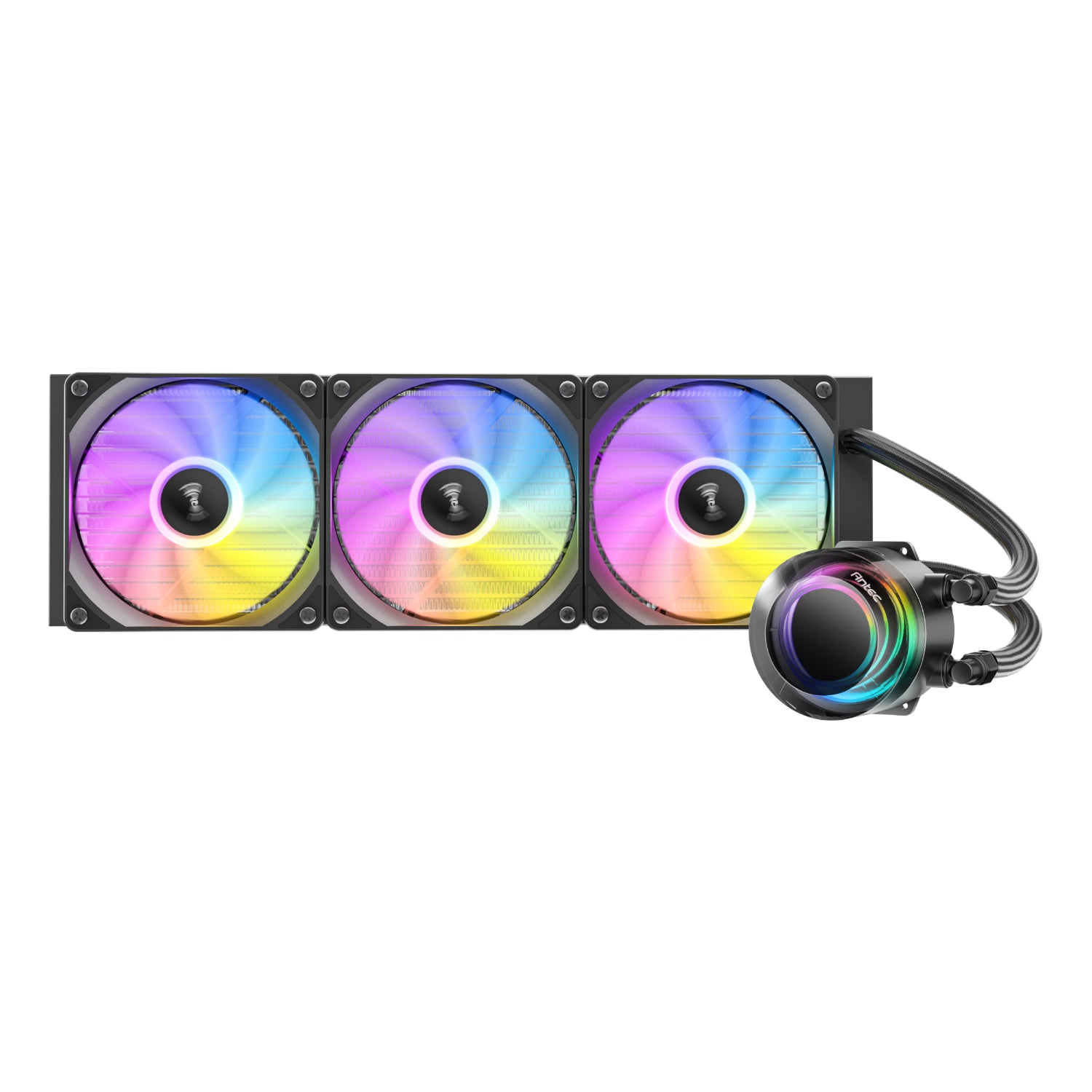

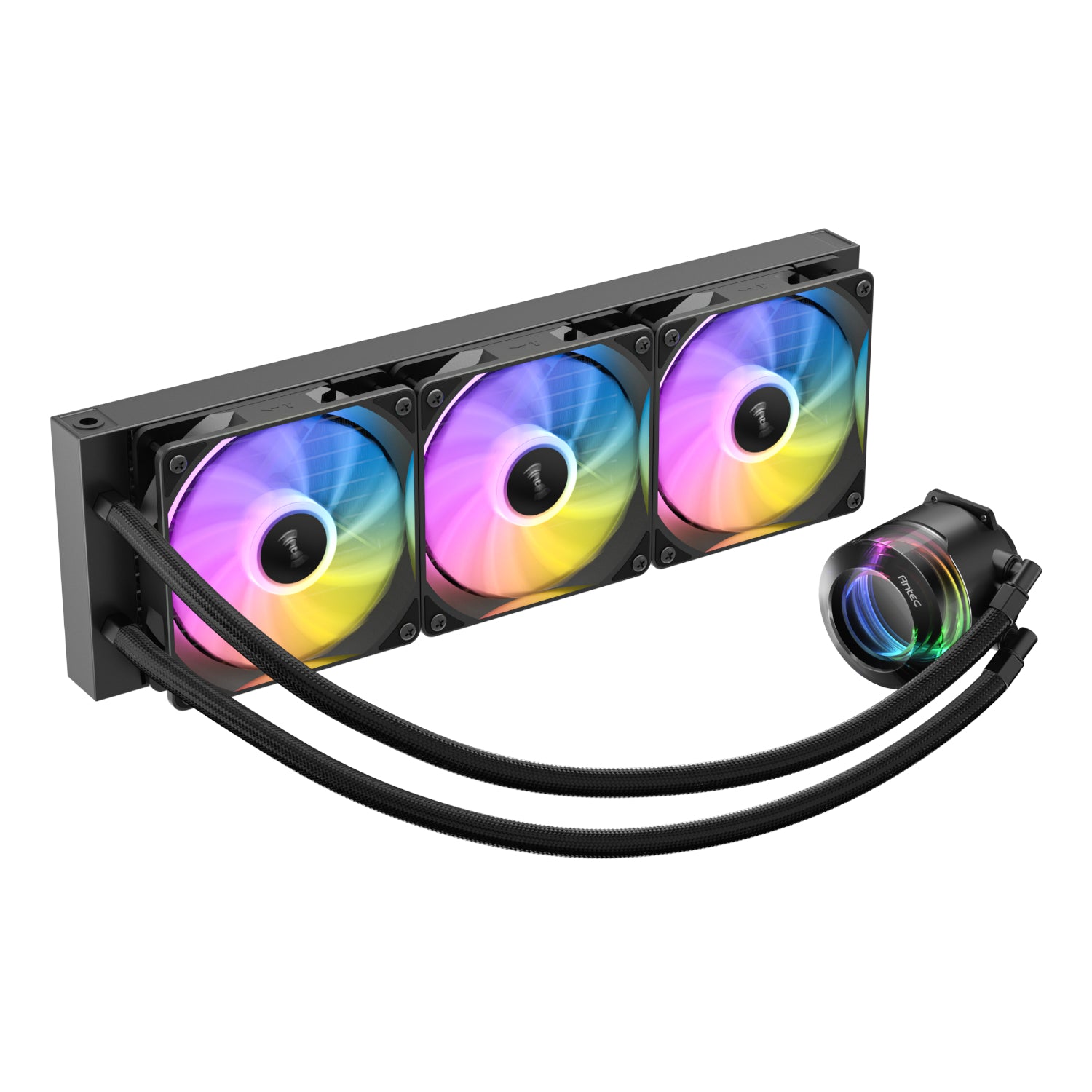

Antec VORTEX LUM 360 ARGB AIO CPU Liquid Cooler - Black

The Antec VORTEX LUM 360 ARGB AIO Liquid Cooler is designed for high-performance cooling, featuring a stunning suspended spiral pump head inspired by the swirling motion of a vortex. This unique design not only enhances aesthetics with vibrant ARGB lighting effects but also ensures superior cooling performance from multiple angles. With a 360mm aluminium radiator, this all-in-one liquid cooler efficiently dissipates heat, making it an ideal solution for gaming rigs and high-performance workstations.

Equipped with a massive copper base plate, the VORTEX LUM 360 maximizes heat transfer, ensuring optimal cooling even under heavy workloads. Its durable EPDM high-density tubing minimizes liquid evaporation, contributing to long-lasting and reliable cooling performance. The system is further supported by three powerful 120mm ARGB PWM fans, which provide exceptional airflow and efficient heat dissipation with speeds ranging from 800 to 1800 RPM.

This AIO cooler includes an advanced ARGB controller that allows users to sync and customize lighting effects with their motherboard, offering complete control over each LED’s colour and pattern. With 13 dense radiator fins and a water pump rated for a flow rate of 1300mL/min, the VORTEX LUM 360 is built for extreme cooling efficiency. Its whisper-quiet operation, with noise levels kept at a maximum of 31 dB(A), ensures a balance of power and silent performance.

Compatible with a wide range of Intel and AMD sockets, including LGA 1700, AM5, and TR4, the Antec VORTEX LUM 360 is a versatile cooling solution for modern CPUs. Whether pushing your system to its limits in gaming or intensive workloads, this AIO liquid cooler delivers high-performance thermal management with stylish ARGB customization, keeping your PC cool and visually stunning.

FEATURES:

• All-in-one design


• 360mm aluminium radiator


• 3 x 120mm PWM ARGB fans

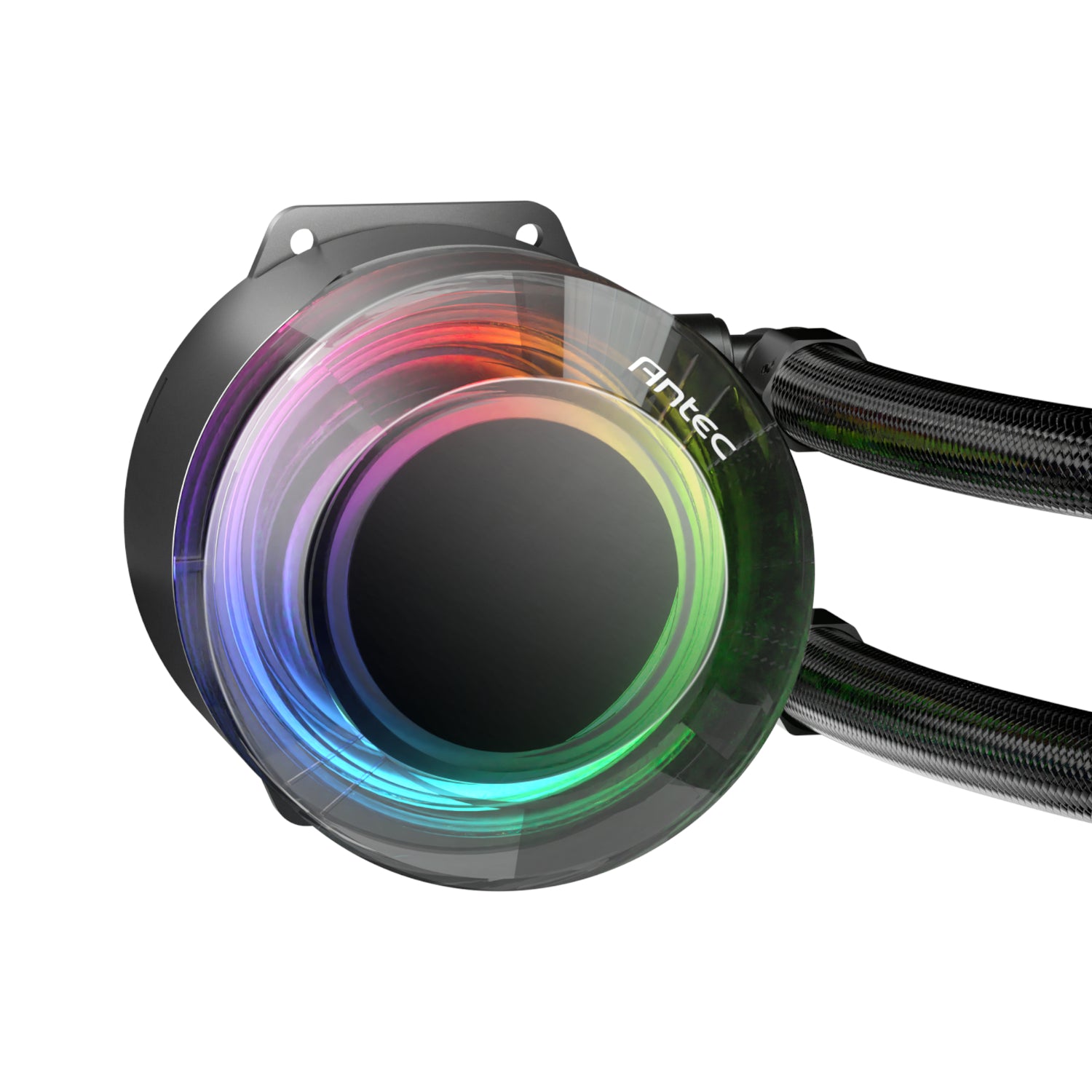

• Suspended spiral pump head design

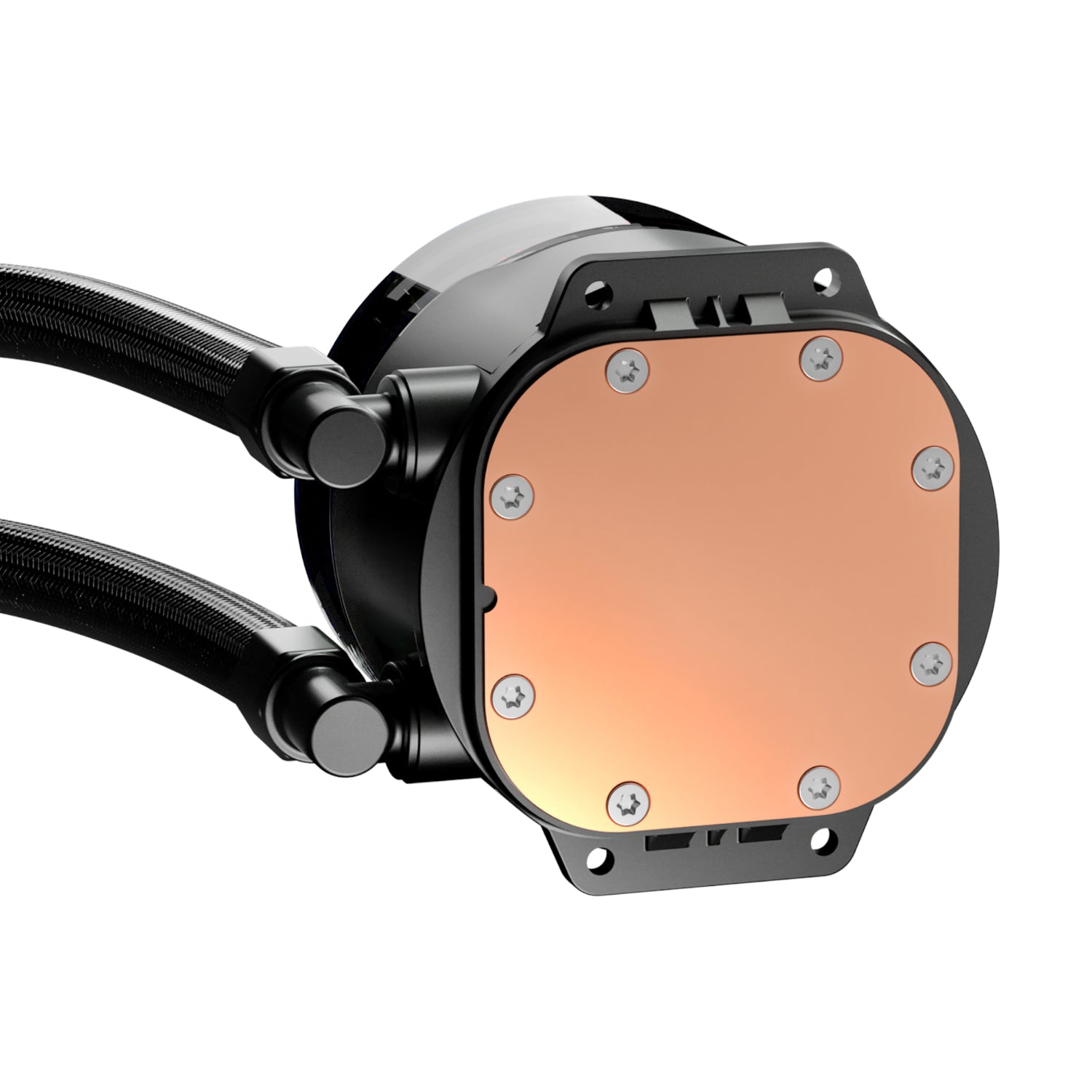

• Massive copper base plate


• EPDM high-density tubing


• Extreme cooling performance


• Intel and AMD compatible

SPECIFICATIONS:

• Radiator:



  • Radiator Material: Aluminum


  • Radiator Dimensions: 39.7 x 12 x 2.7 cm






• Pump:



  • Rating Voltage: DC 12 V


  • Minimum Startup Voltage: ≥5.0  V


  • Fan Speed: 2800±10% RPM


  • Rated Current: 0.25±20% A


  • Consumed Power: 3.0 W


  • Flow rate: ≥1300 mL/min


  • Water Pressure: 1.4 m


  • Operation Temperature: -10°C ~ +60°C


  • Noise Level: ≤28 dB(A)


  • Lifespan: 40,000 hours


  • Connector: PUMP: 3-pin | LED: 3-pin


  • Dimensions: Φ6.7*4.8 cm






• Fan:



  • Bearing Type: Hydraulic Bearing


  • LED Type: Addressable RGB


  • Fan Speed: 800±200~1800±10% RPM


  • Airflow: 71.5 CFM (max.)


  • Air Pressure: 2.45 mmH₂O (max.)


  • Fan Noise Level: 31 dB(A)


  • Lifespan: 40,000 hours


  • Connector: PH 2.0 7-pin (PWM+ARGB)


  • Rated Voltage: FAN: DC 12 V | LED: DC 5 V


  • Operation Voltage: FAN: DC 10.8-13.2 V | LED: DC 4.5-5.5 V


  • Rated Current: FAN : 0.20-0.25 A | LED : 0.32 A


  • TDP: ≤ 280W


  • Dimensions: 12 x 12 x 2.5 cm






• Socket Compatibility CPU



  • Intel: LGA 115X/1200/1700/20XX/1851


  • AMD: AM3/AM4/AM5/TR4






• Colour: Black

WHAT'S IN THE BOX:

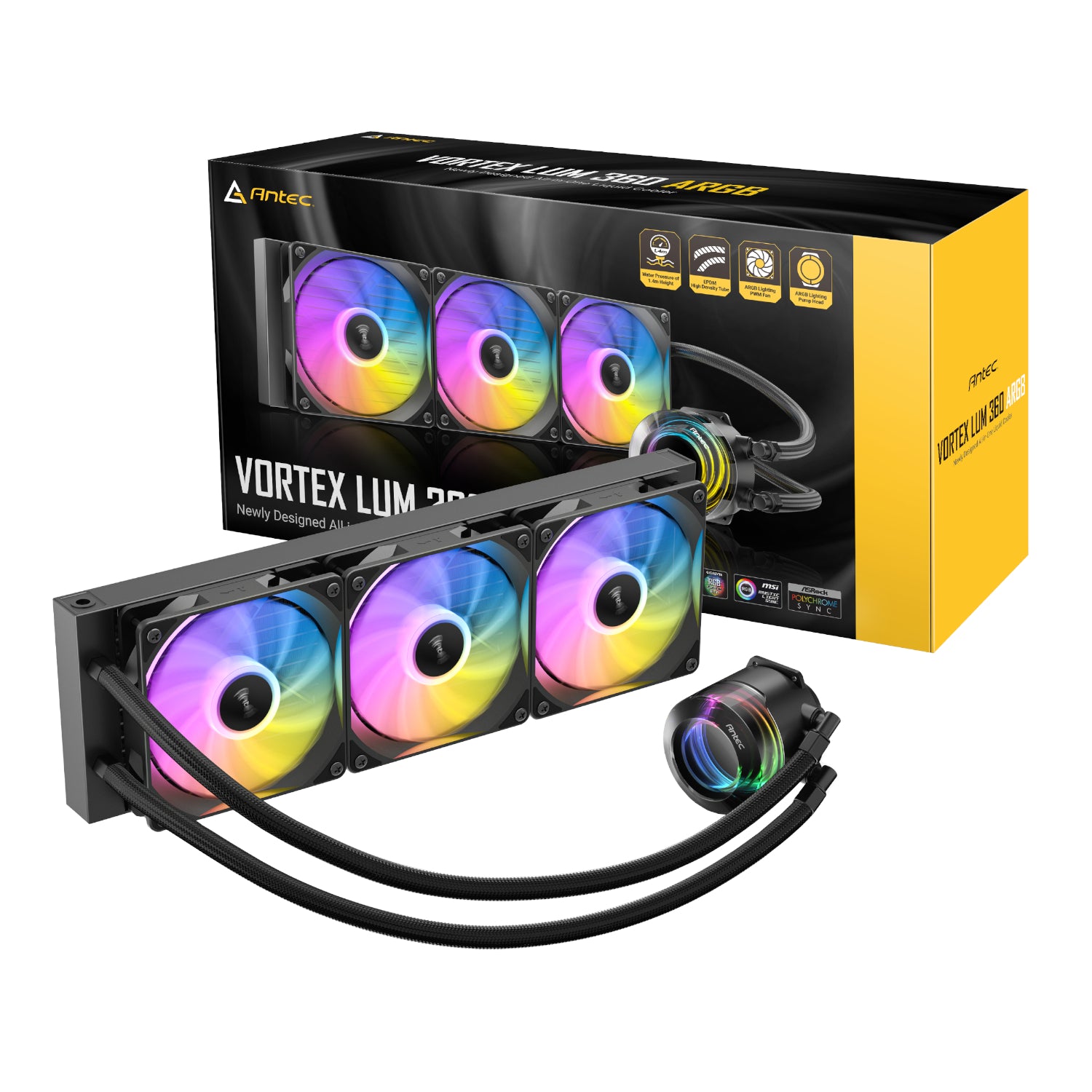

• Antec VORTEX LUM 360 ARGB AIO CPU Liquid Cooler - Black x1

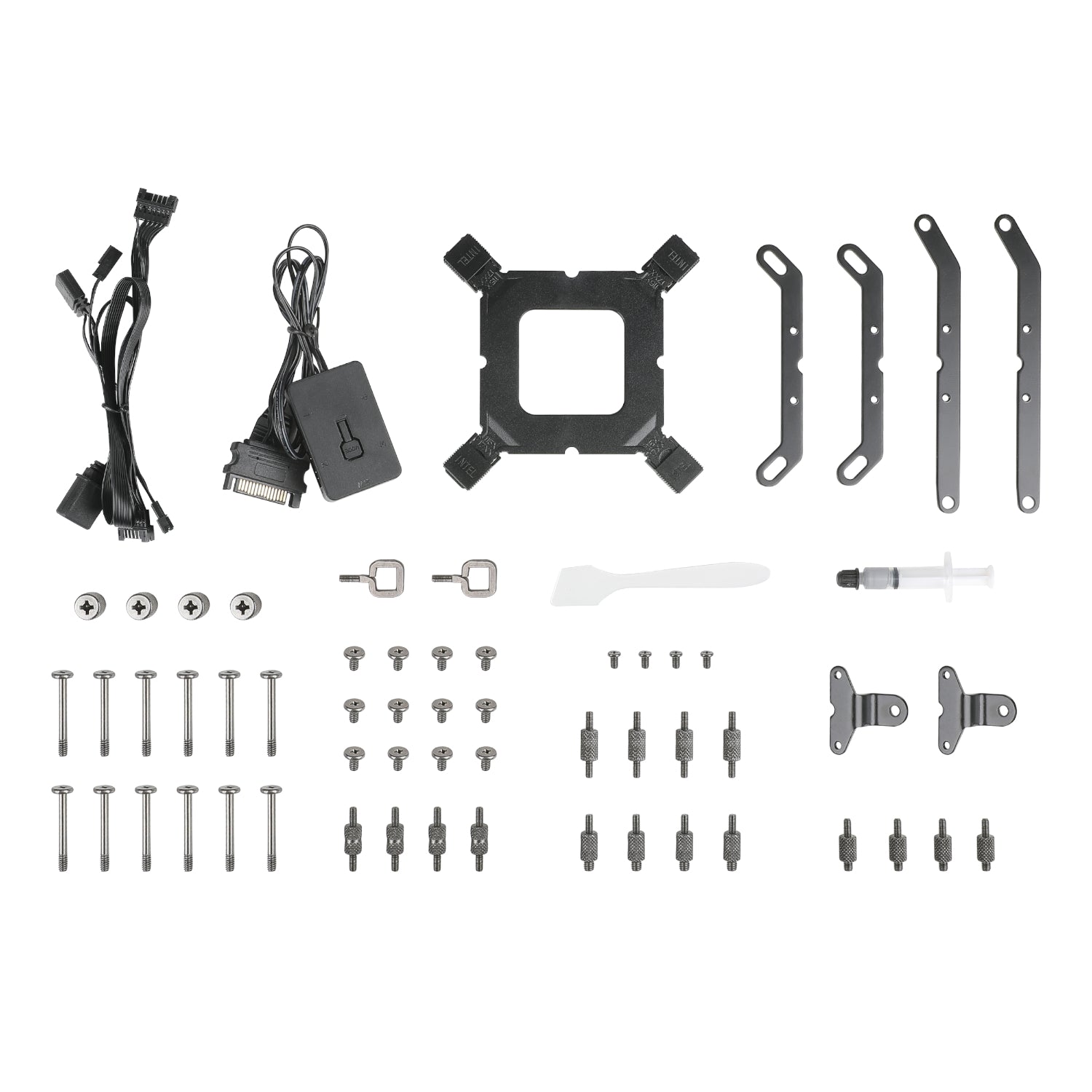

• Mounting kit with thermal paste x1


• Screws kit x1


• SATA Power Cable x1


• RGB Cable x1
