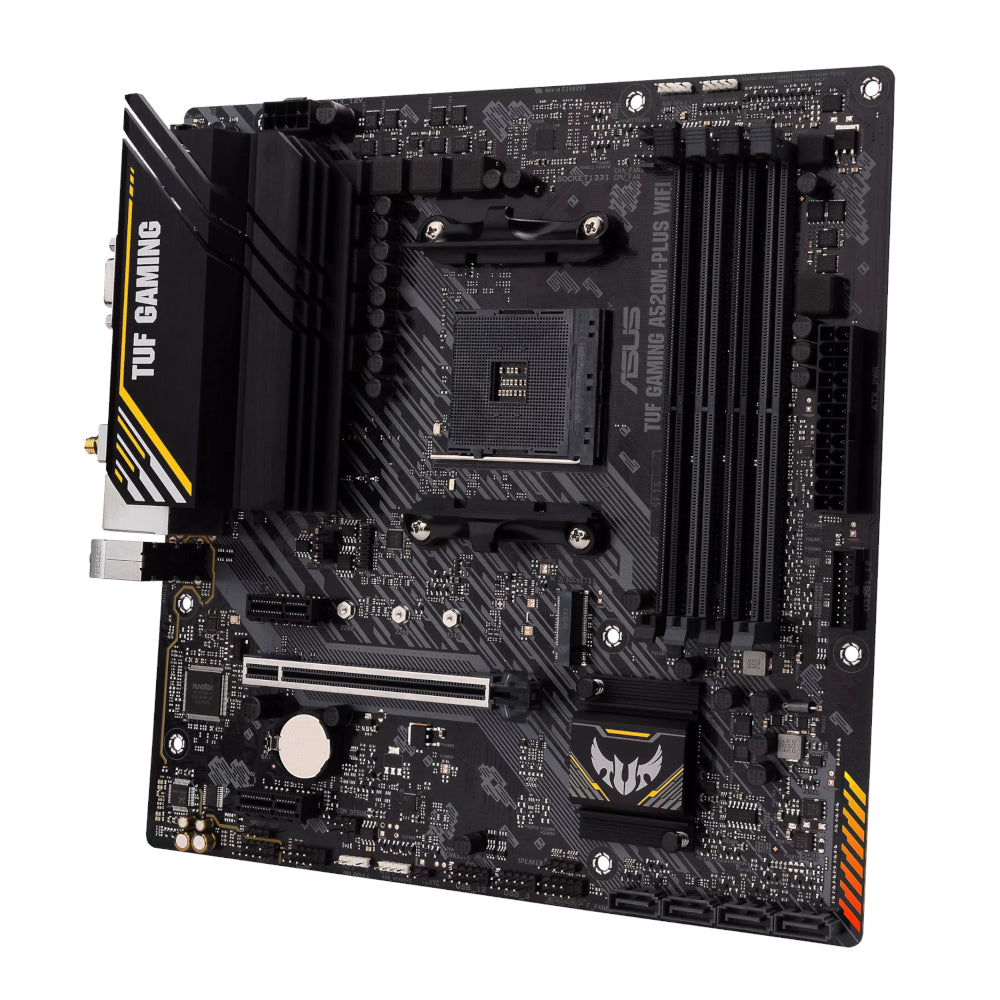

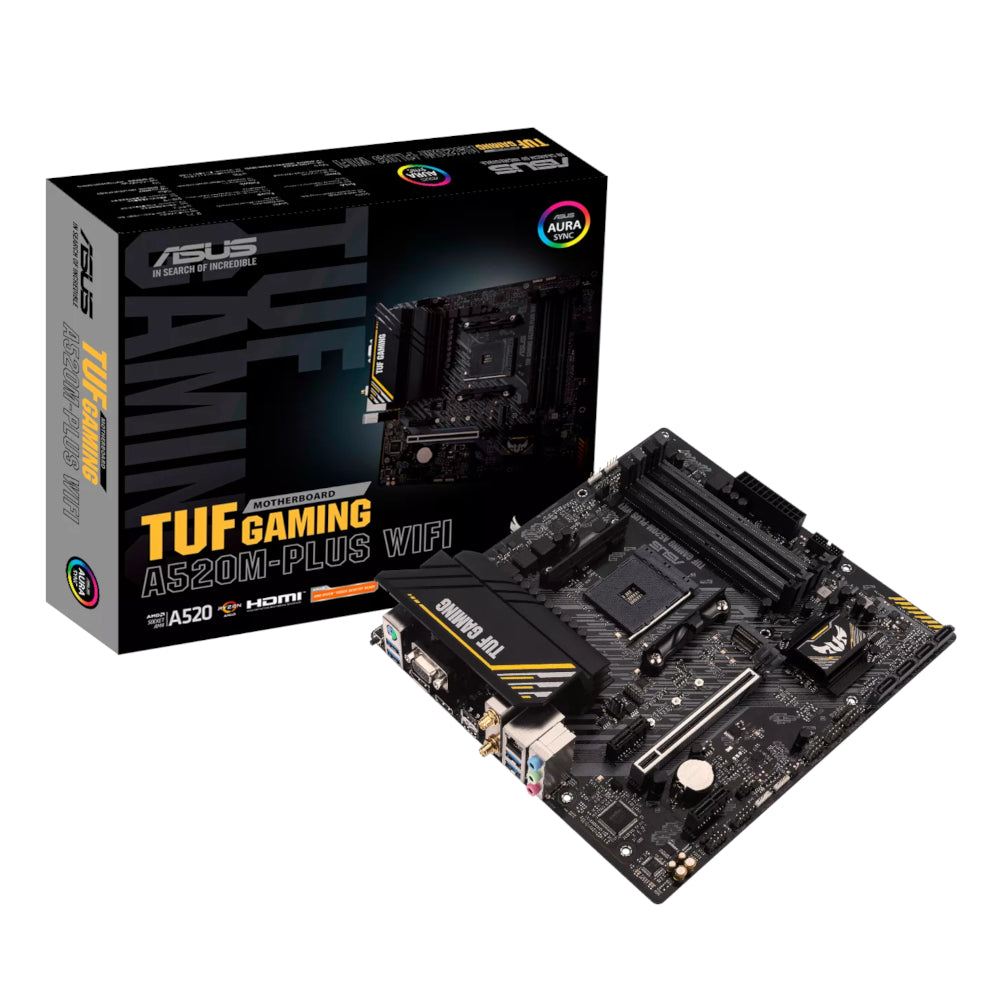

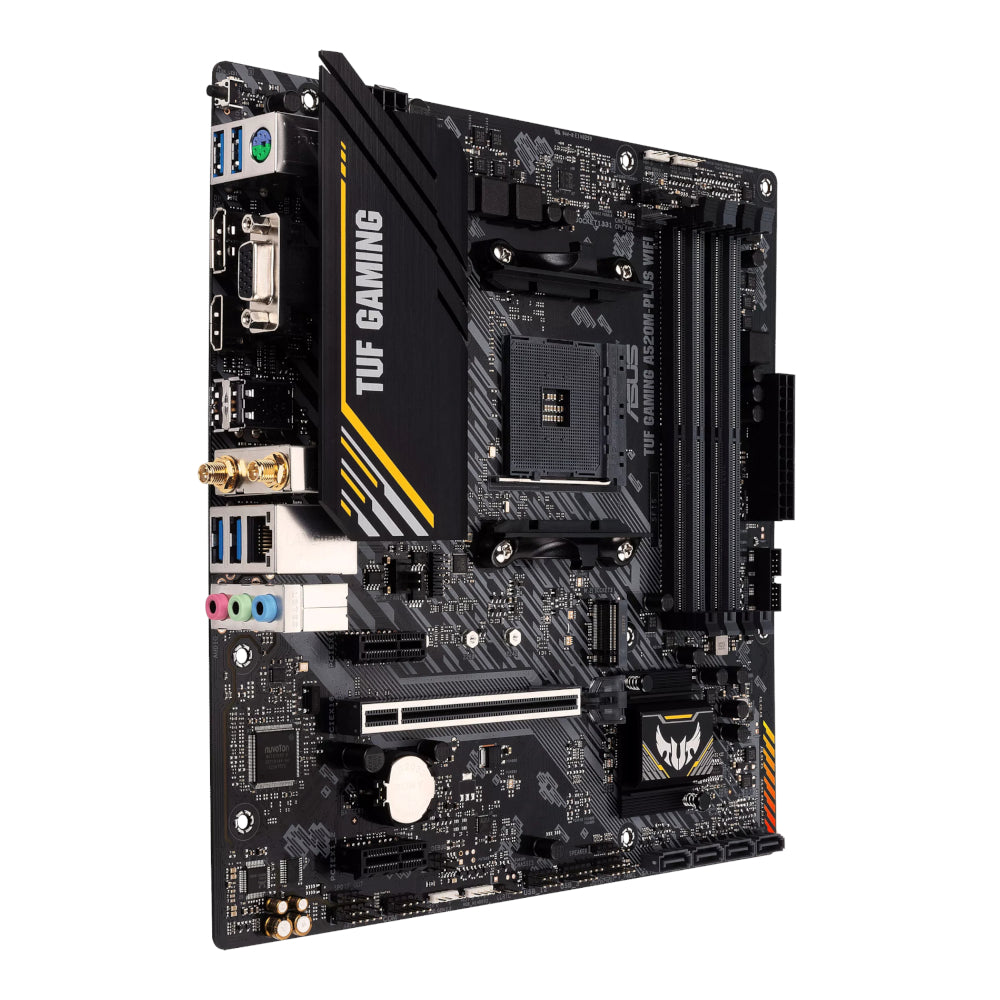

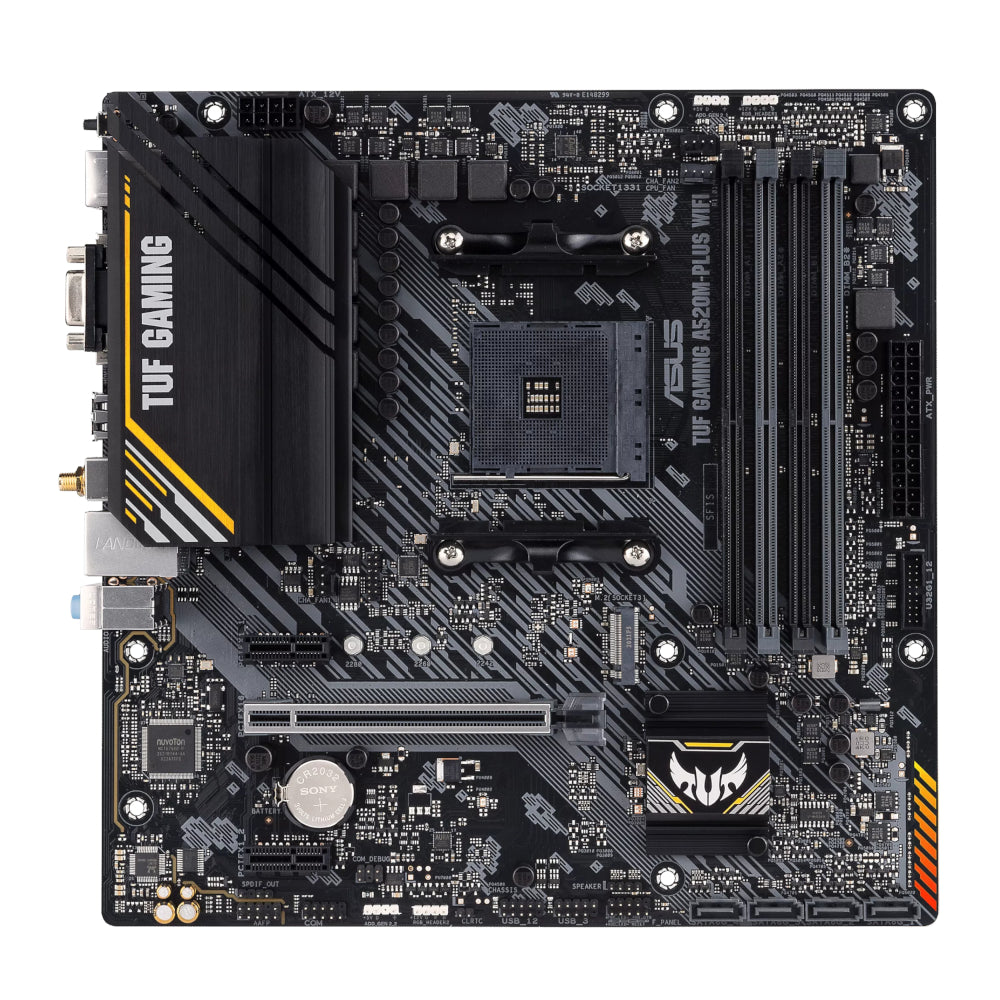

ASUS TUF Gaming A520-Plus WIFI

The ASUS TUF Gaming A520M-PLUS WiFi AM4 M-ATX Gaming Motherboard combines rugged durability with powerful gaming features to deliver a solid foundation for your next build. Designed to support AMD Ryzen™ 5000, 4000 G-Series, and 3000 Series Desktop Processors, this motherboard features the AMD A520 chipset and dual-channel DDR4 memory support for seamless performance. Its military-grade components ensure reliable power delivery, while the comprehensive cooling system, including large VRM and PCH heatsinks, keeps your system running efficiently during intense gaming sessions.

Engineered for gamers, the A520M-PLUS WiFi offers advanced connectivity and customization. It includes 802.11ac Wi-Fi for ultrafast wireless speeds, Realtek 1Gb Ethernet with TUF LANGuard, and TurboLAN technology for low-latency online gameplay. The onboard M.2 slot supports PCIe 3.0 bandwidth for lightning-fast data transfer speeds, enabling quicker boot-ups and app load times. With support for up to 128GB of DDR4 memory, four DIMM slots, and a range of PCIe options, this motherboard is equipped to handle demanding multitasking and high-performance gaming setups.

The motherboard is built for long-term use with ESD Guards, onboard resettable fuses, and a SafeSlot Core+ PCIe slot fortified with a stainless-steel brace. These features enhance durability and safeguard your components from electrostatic discharge, short circuits, and physical wear. Additionally, the corrosion-resistant stainless-steel back I/O panel has passed rigorous 72-hour salt fog testing, ensuring a longer lifespan than traditional panels. Whether you're a first-time builder or an experienced gamer, the TUF Gaming Alliance ecosystem simplifies component selection and setup while maintaining optimal compatibility and aesthetics.

For added flair, the TUF Gaming A520M-PLUS WiFi features Aura Sync RGB lighting, enabling full control of onboard LEDs and connected RGB hardware. This motherboard is also compatible with an ever-expanding portfolio of Aura-capable devices, allowing you to create a cohesive and visually stunning gaming environment. With a sleek mATX form factor, robust features, and game-ready enhancements, this motherboard is perfect for those seeking reliable performance and customization for their gaming rigs.

FEATURES:

• AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors


• A520 chipset with dual channel DDR4 memory support


• DisplayPort, HDMI, and VGA support


• Comprehensive cooling: Large VRM heatsink, PCH heatsink, Fan Xpert 2+


• Made for online gaming: 802.11ac Wi-Fi, TUF LANGuard and TurboLAN technology


• Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware

SPECIFICATIONS:

• Socket: AM4


• CPU: AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors


• Chipset: A520


• DDR4 Memory: DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz


• Memory Channel: Dual


• DIMM Slots: 4


• Max Memory (GB): 128GB


• PCI-E 3.0 x16: 1


• PCI-E 3.0 x1: 2


• M.2 Slot: 1


• SATA 6G: 4


• RAID: 0/1/10


• LAN: Realtek 1Gb Ethernet/ TUF LANGuard


• Wireless and Bluetooth: Realtek Wi-Fi 5 8821CE


• USB 3.2 ports (Front): 2(Gen 1, Type A)


• USB 3.2 ports (Rear): 4(Gen 1, Type A)


• USB 2.0 ports (Front): 3


• USB 2.0 ports (Rear): 2


• Audio ports (Rear): Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC


• HDMI: 1


• Display Port: 1


• VGA: 1


• DirectX: 12


• Form Factor: mATX


• Operating System: Support for Windows® 10 64-bit

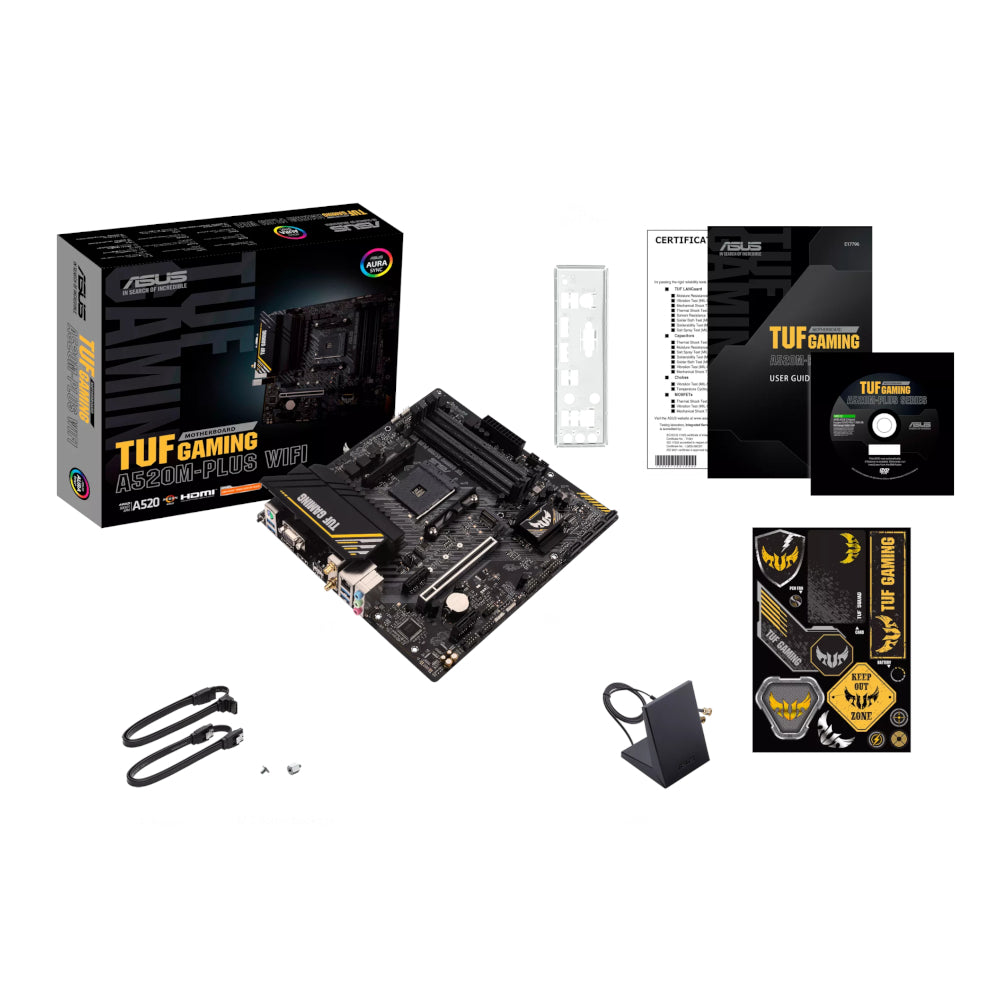

WHAT'S IN THE BOX:

• Asus TUF Gaming A520M-PLUS WiFi AM4 M-ATX Gaming Motherboard - Black x1


• SATA Cables x2


• I/O Shield x1


• M.2 SSD Screw Package x1


• Asus Wi-Fi Antenna x1


• TUF gaming sticker x1


• User Manual x1
