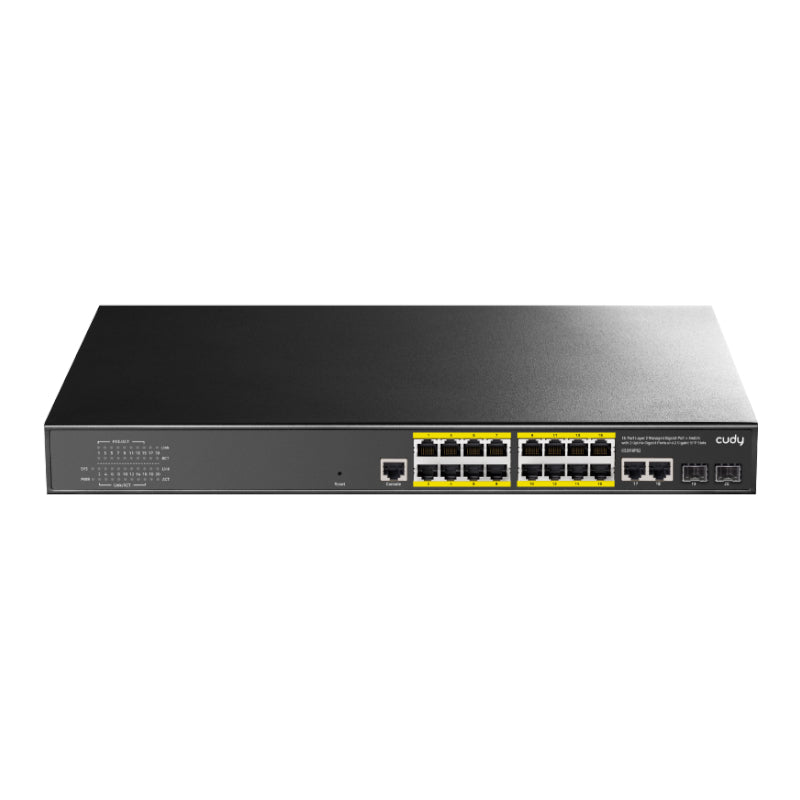

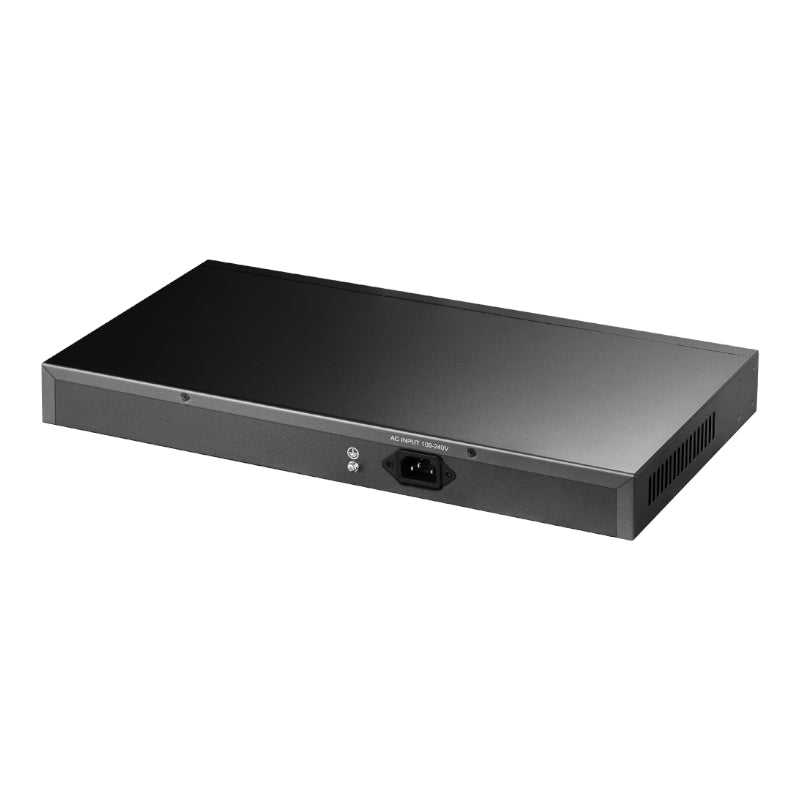

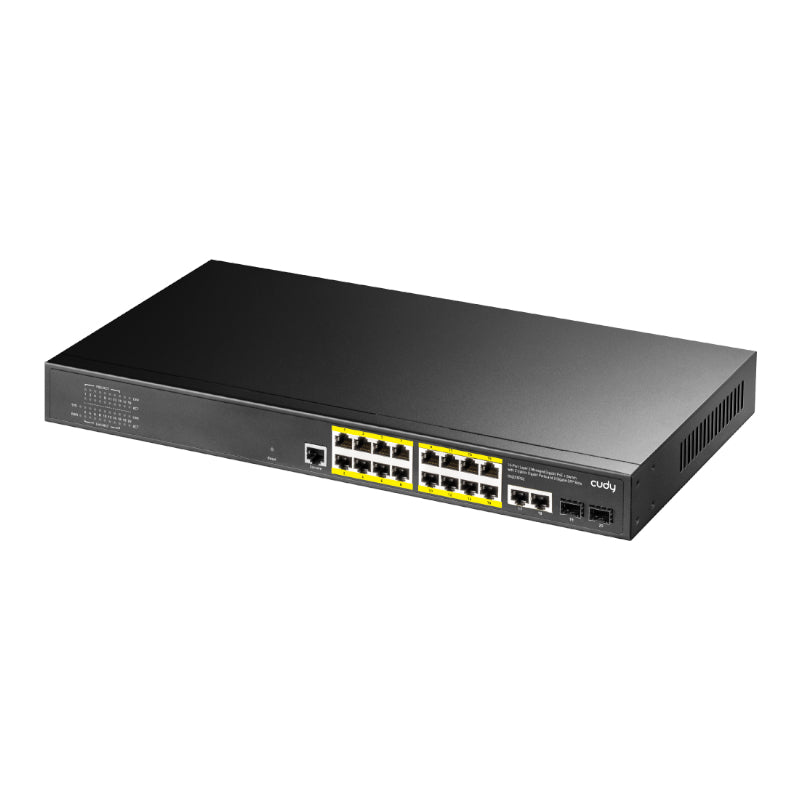

Cudy 16 Port Layer 2 Managed Gigabit PoE Switch

Cudy

Cudy 16 Port Layer 2 Managed Gigabit PoE Switch

SKU GS2018PS2
R 4,319.00 ZAR

No VAT added at checkout.

Save R 129.57 (3%) when you pay by EFT bank transfer. Choose Bank deposit at checkout and we'll apply the saving after you order.

or 6 × R 719.83 interest-free Stitch Payflex
or
with mobicred (interest and fees apply)
In stock — 9 available
  • Registered SA company (Reg. 2025/494434/07)
  • Brand-new stock from established SA distributors
  • Secure checkout
Ways to pay Stitch Payflexmobicred

Pay in interest-free instalments

R 2,159.50 × 2 Total R 4,319.00, no interest
  • Stitch Stitch Pay LaterMonthly, first payment at checkout. Choose it at checkout.2 × R 2,159.50
  • PayflexPayflexEvery 2 weeks, first payment at checkout. Choose Payfast at checkout, then Payflex.2 × R 2,159.50
R 1,439.66 × 3 Total R 4,319.00, no interest
  • Stitch Stitch Pay LaterMonthly, first payment at checkout. Choose it at checkout.3 × R 1,439.66
  • PayflexPayflexEvery 2 weeks, first payment at checkout. Choose Payfast at checkout, then Payflex.3 × R 1,439.66
R 1,079.75 × 4 Total R 4,319.00, no interest
  • Stitch Stitch Pay LaterMonthly, first payment at checkout. Choose it at checkout.4 × R 1,079.75
  • PayflexPayflexEvery 2 weeks, first payment at checkout. Choose Payfast at checkout, then Payflex.4 × R 1,079.75
R 719.83 × 6 Total R 4,319.00, no interest
  • Stitch Stitch Pay LaterMonthly, first payment at checkout. Choose it at checkout.6 × R 719.83
mobicred Mobicred credit accountPay monthly. Interest and fees apply; Mobicred shows the full cost before you accept. Choose Payfast at checkout, then Mobicred. Monthly amount shown under the price
Pay in fullCard, Apple Pay, Google Pay, Capitec Pay, Instant EFT or Zapper Visa Mastercard Apple Pay Google Pay Capitec PayPayFast Instant EFTZapper

Instalments are interest-free if you pay on time and are subject to the provider's approval and terms. Any delivery fee is added at checkout. The last instalment may differ by a few cents.

  • Free deliveryThis product qualifies, anywhere in South Africa
  • 2–5 business daysDelivery, nationwide
  • 24 months warrantyIncluded with this product
  • 7-day returnsChange of mind. Refund policy

Overview

About this product

The Cudy 16-Port Layer 2 Managed Gigabit PoE+ Switch with 2 x Uplink and 2 x FSP slots allows you to manage your home or office network with ease. It features 16 Ethernet PoE ports with 2 x uplink ports and 2 x SFP slots. Its PoE RJ-45 connectors support any 10/100/1000Mbps Ethernet devices, while the 2 non-PoE uplink ports support 10/100/1000Mbps Ethernet devices and it’s compliant with IEEE 802.3af/802.3at network standards.


Used for many applications the Cudy 16 Port PoE+ Switch works with IP Cameras for home, office or small businesses. It also works well with PCs, printers and access points in your home or office, making it ideal for small businesses. It even features a VLAN mode for additional security, this allows the ports to be isolated from one another.


Its simple plug-and-play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design with venting holes to help dissipate heat with silent operation.


Watchdog guarantees the uninterrupted operation of your PoE devices. The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.


FEATURES:



  • 16 Gigabit POE Ports, 2 Uplink Gigabit Ports and 2 Gigabit SFP Slots 1 Console Port

  • Compatible with IEEE802.3at and IEEE802.3af

  • Ethernet port supports 10/100/1000M adaptive

  • Fanless design, natural cooling, compatible with 1U Rack Mount

  • Support PoE Power Management, PoE watchdog

  • Lightning Protection Surge: General Mode 6KV, Differential Mode 4KV, ESD 15KV


SPECIFICATIONS:



  • AC Input: AC100-240V, 50/60Hz

  • Ethernet Port: 16 x 10/100/1000Mbps PoE Port, 2 x 1000Mbps SFP Port, 2 x 1000Mbps Uplink Port, 1 x RJ45 Console Port

  • Bandwidth: 40Gbps

  • Packet Forwarding rate: 19.76Mpps

  • DDR SDRAM: 128MB

  • Flash Memory: 16MB

  • Packet Buffer Memory: 4M

  • MAC Address: 8K

  • Jumbo frame: 9.6Kbytes

  • VLANs: 4096

  • Network Protocols:

  • IEEE 802.3: Ethernet MAC Protocol

  • IEEE 802.3i: 10BASE-T Ethernet

  • IEEE 802.3u: 100BASE-TX Fast Ethernet

  • IEEE 802.3ab: 1000BASE-T Gigabit Ethernet

  • IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical fiber)

  • IEEE 802.3ad: Standard method for performing link aggregation

  • IEEE 802.3x: Flow control

  • IEEE 802.1ab:  LLDP/LLDP-MED (Link Layer Discovery Protocol)

  • IEEE 802.1p: LAN Layer QoS/CoS Protocol Traffic Prioritization (Multicast filtering function)

  • IEEE 802.1q: VLAN Bridge Operation

  • IEEE 802.1x: Client/Server Access Control and Authentication Protocol

  • IEEE 802.1d: STP

  • IEEE 802.1s: MSTP

  • IEEE 802.1w: RSTP

  • PoE protocol: IEEE802.3af (15.4 W), IEEE802.3at (30 W)

  • Network Media: 10BASE-T: Cat3, 4, 5 or above UTP(≤100 M), 100BASE-TX: Cat5 or above UTP(≤100 M), 1000BASE-TX: Cat5 or above UTP(≤100 M)

  • Fiber Medium: Multi-mode Fiber: 50/125, 62.5/125, 100/140um, Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um

  • Working Environment: Operating temperature: -20~50°C, Storage temperature: -40~85°C, Operating Humidity: 10%~90%, No condensation, Storage Humidity: 5%~90%, No condensation, Working height: Up to 10,000 feet, Storage height: Up to 10,000 feet

  • Indicator: PWR, SYS, PoE, Link/ACT

  • PWR (Power Indicator): Lighting: Powered, Un-Light: No Power

  • SYS (System Indicator): Flashing: System Start-up, Lighting: System Running

  • PoE: Lighting: PoE on, Un-Light: PoE off

  • Link/ACT: Lighting: Link connection, Flashing: Data transmission, Un-Light: Link disconnect

  • VLAN: 1-16 ports are isolated from each other, and the PoE Watchdog function is open (hardware takes precedence over software)

  • Default: All ports can communicate with each other, PoE Watchdog is closed

  • Extend: 13-16 Port: Supports 250m link extension at a rate of 10M, other ports normal, PoE Watchdog open (hardware takes precedence over software)

  • Reset: Short press restart, long press 5 seconds to restore factory Settings


WHAT'S IN THE BOX:



  • Cudy 16-Port Layer 2 Managed Gigabit PoE+ Switch with 2 Uplink+2 FSP slots x1
