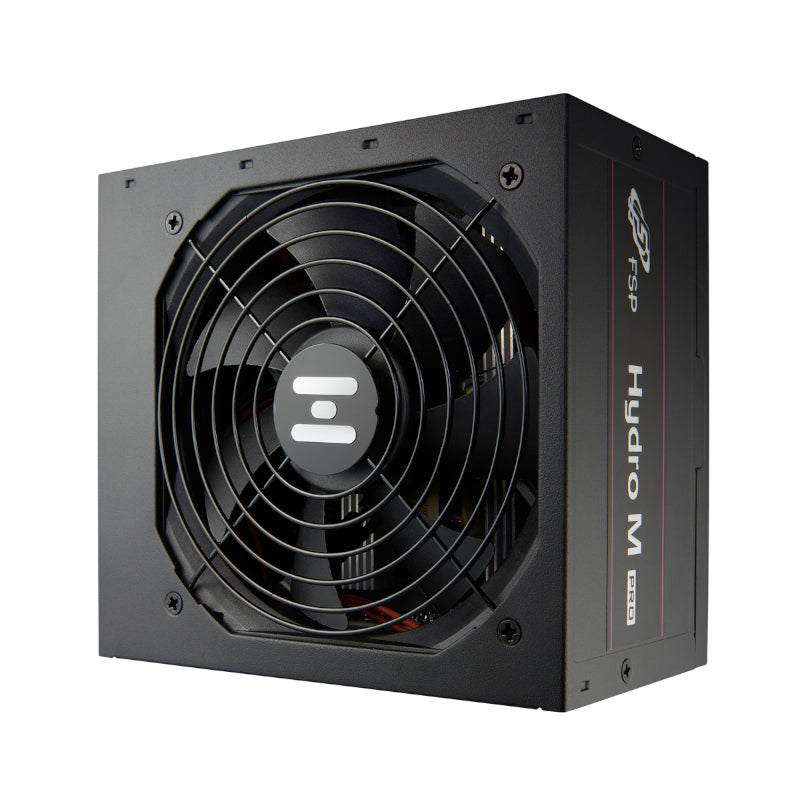

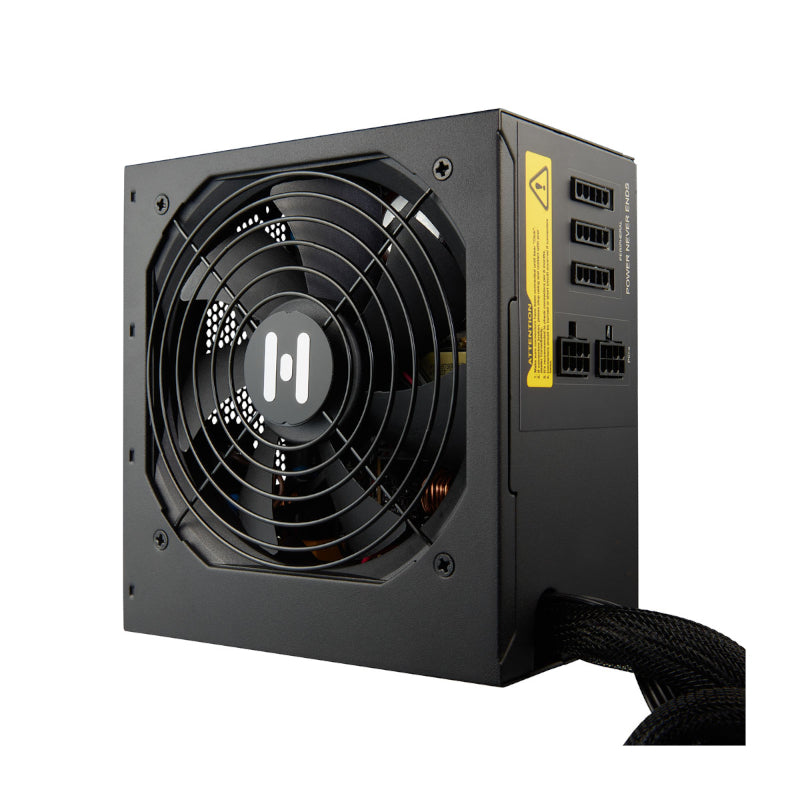

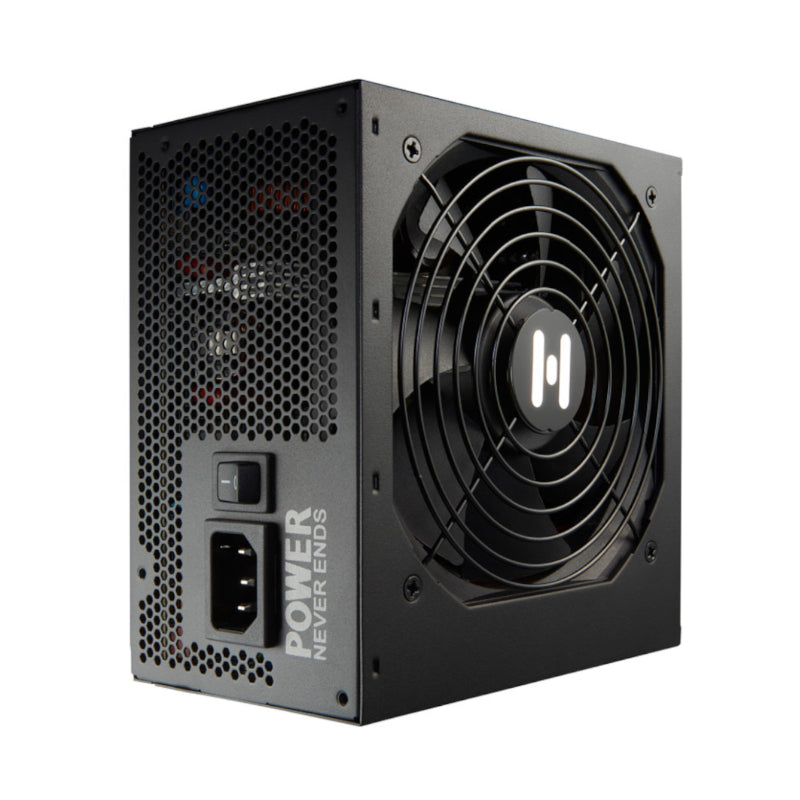

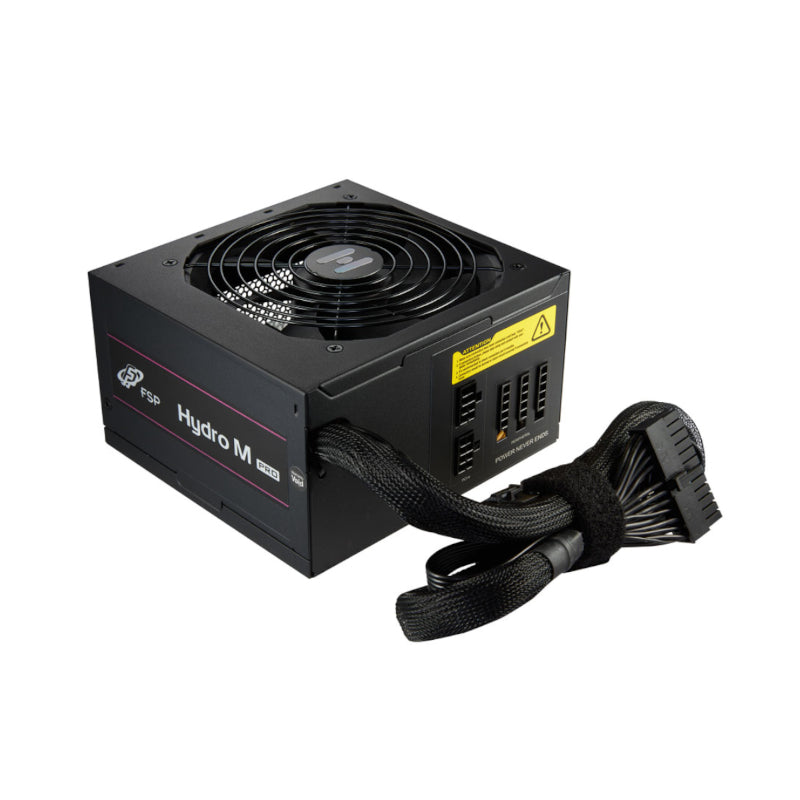

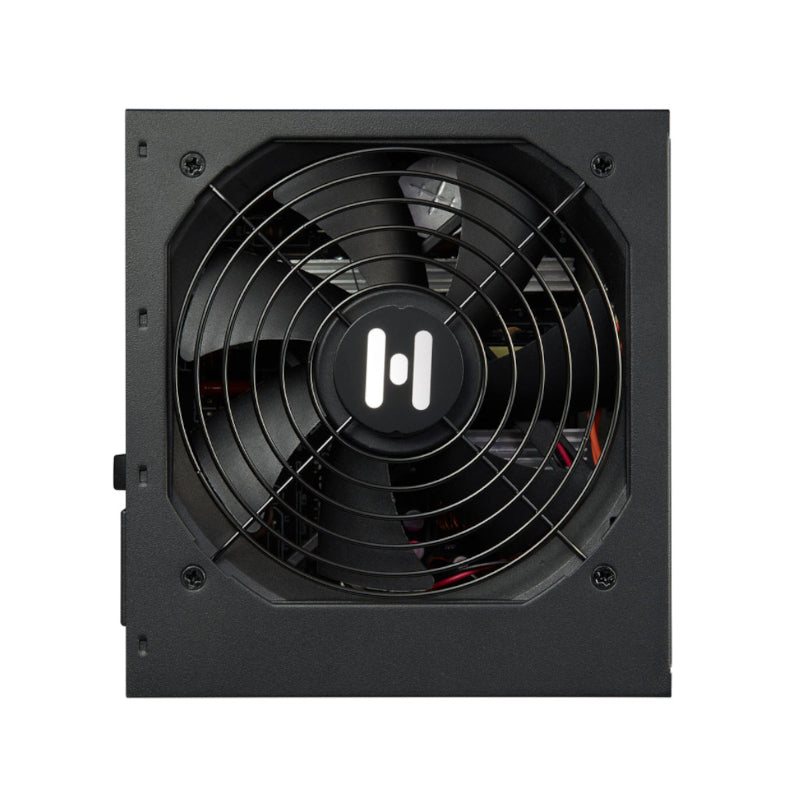

FSP Hydro Pro M 700W Semi-Modular PSU

The FSP Hydro M Pro 700W ATX Semi-Modular Power Supply features a semi-modular design with all-black coating ribbon cables that give your system a superior look. The Hydro M Pro is equipped with a 120mm hydraulic bearing fan (HYB) which makes for optimum cooling and reduces noise. Moreover, the lifespan of the fan is longer than the standard one. With a 230V 80 Plus ®rating, the Hydro M Pro series delivers over 88% high efficiency making it very reliable.

The Hydro M Pro series applies DC to DC modules to improve the reliability for greater compatibility as well as low ripple noise to reduce interference of system components for a prolonged system lifetime. The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, and peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.

FEATURES:

• Complies with ATX12 v2.52 & EPS12 V2.92


• Efficiency≧ 88% @ typical load


• Active PFC ≧ 0.9


• Hold up time ≧ 17ms @ 80% Load


• Semi-modular design with ribbon cables


• 450V, 105°C capacitors for a long product life cycle


• 120mm hydraulic bearing (HYB) fan


• +5V & 3.3V DC to DC module design


• +12V Single-Rail Design


• Complete protections: OCP/OVP/OPP/SCP

SPECIFICATIONS:

• Rated Output Power: 700W


• Form Factor: ATX


• 80 PLUS Certification: 80 PLUS® 230V EU Bronze


• Input Voltage: 200-240V


• Input Current: 5A


• Input Frequency: 50-60Hz


• PFC: Active PFC


• Efficiency: 88%


• Fan Type: HYB Fan, 12 cm


• Protection: OCP, OVP, OPP, SCP


• Cable Connections:



  • ATX 20+4 x 1


  • 4+4 PIN x 2


  • PCI-E 6+2 x 4


  • SATA x 8


  • Molex (PERIPHERAL) x 3


  • Floppy x 1






• Dimensions: 15 x 14 x 8.6 cm

WHAT'S IN THE BOX:

• FSP Hydro M Pro 700W ATX Semi-Modular Power Supply – Black x1
