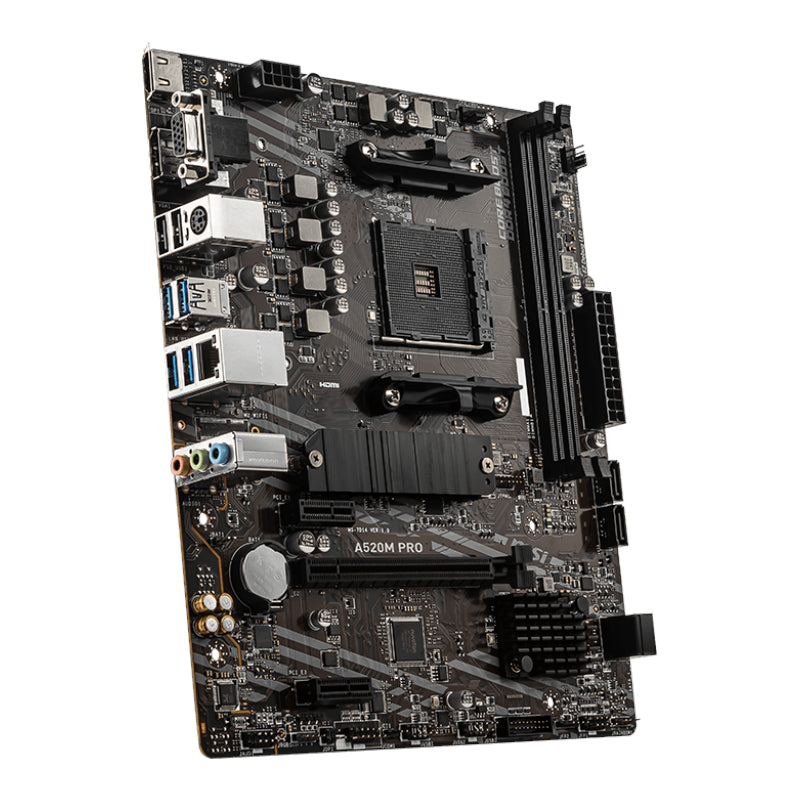

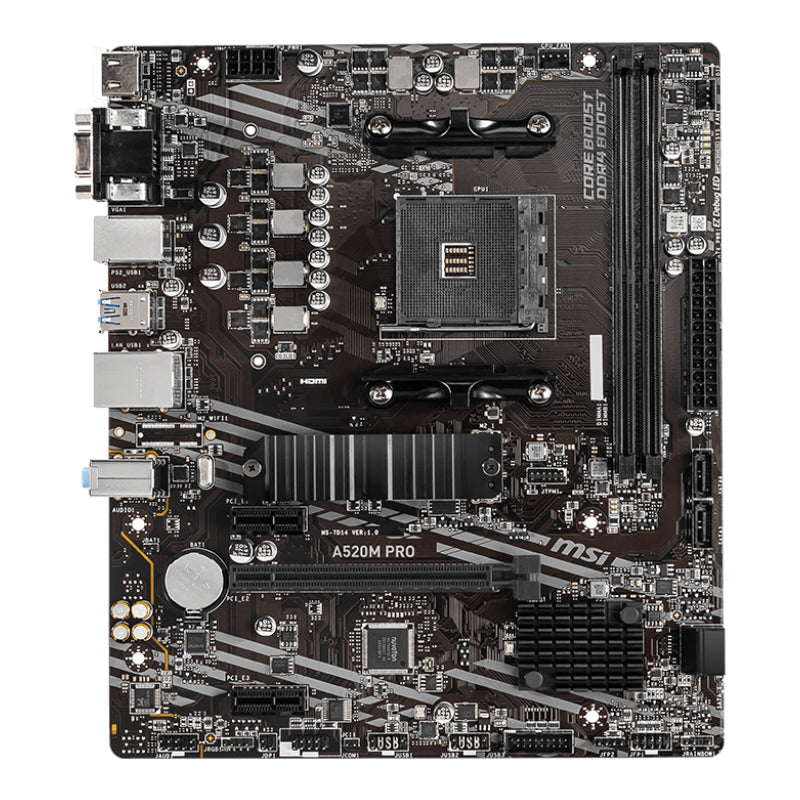

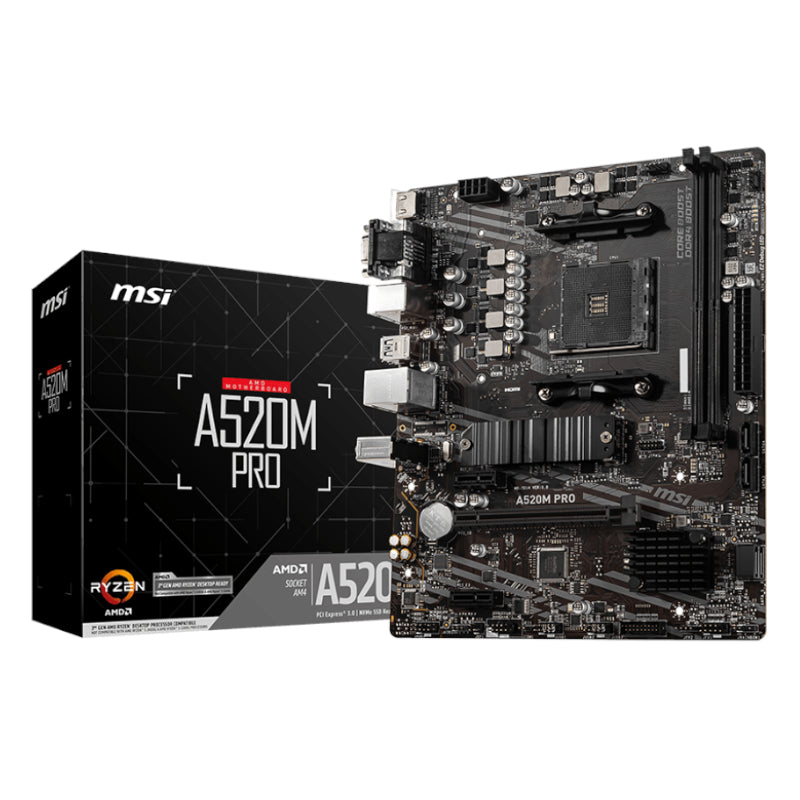

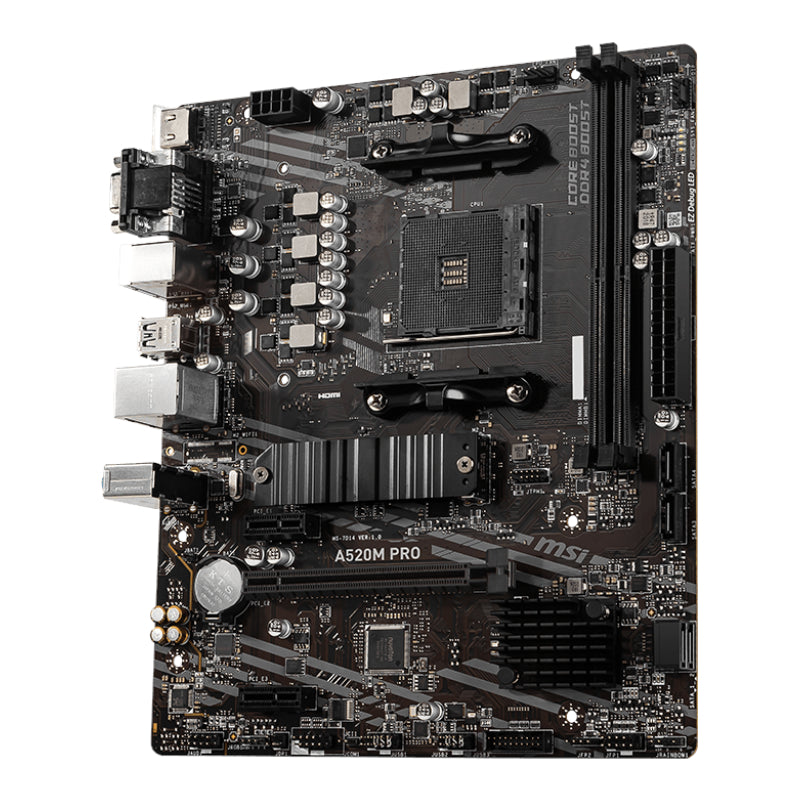

MSI A520M-PRO AMD AM4 MATX Gaming Motherboard

MSI PRO Series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance-enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance. Stay connected with Intel^® LAN, optimized for stable internet throughput ideal for championship-level online plays.

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.

FEATURES:

• Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors


• Supports DDR4 Memory, up to 4600(OC) MHz


• Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs


• Core Boost: With premium layout and digital power design to support more cores and provide better performance.


• DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.


• 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.


• Audio Boost: Reward your ears with studio-grade sound quality

SPECIFICATIONS:

• Socket: AMD Socket AM4


• CPU (Max Support): Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series process


• Chipset: AMD® A520 Chipset


• DDR4 Memory: Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC - Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC Mode


• Memory Channel: Dual


• DIMM Slots: 2


• Max Memory (GB): 64


• PCI-E x16: 1


• PCI-E GEN: Gen3


• PCI-E x1: 2


• SATAIII: 4


• M.2 Slot: 1


• TPM (Header): 1


• RAID: 0/1/10


• LAN: Realtek® RTL8111H Gigabit LAN


• USB 3.2 ports (Front): 2(Gen 1, Type A)


• USB 3.2 ports (Rear): 4(Gen 1, Type A)


• USB 2.0 ports (Front): 4


• USB 2.0 ports (Rear): 2(Type A)


• Serial Ports(Front): 1


• Audio ports (Rear): Realtek® ALC892/ALC897 Codec


• DisplayPort: 1


• HDMI: 1


• VGA: 1


• DirectX: 12


• Form Factor: M-ATX


• Operating System: Support for Windows® 10 64-bit

WHAT'S IN THE BOX:

• MSI A520M PRO AM4 mATX Motherboard - Black x1


• SATA cables x2


• I/O Shield x1


• Driver DVD x1


• Quick Install Guide x1
