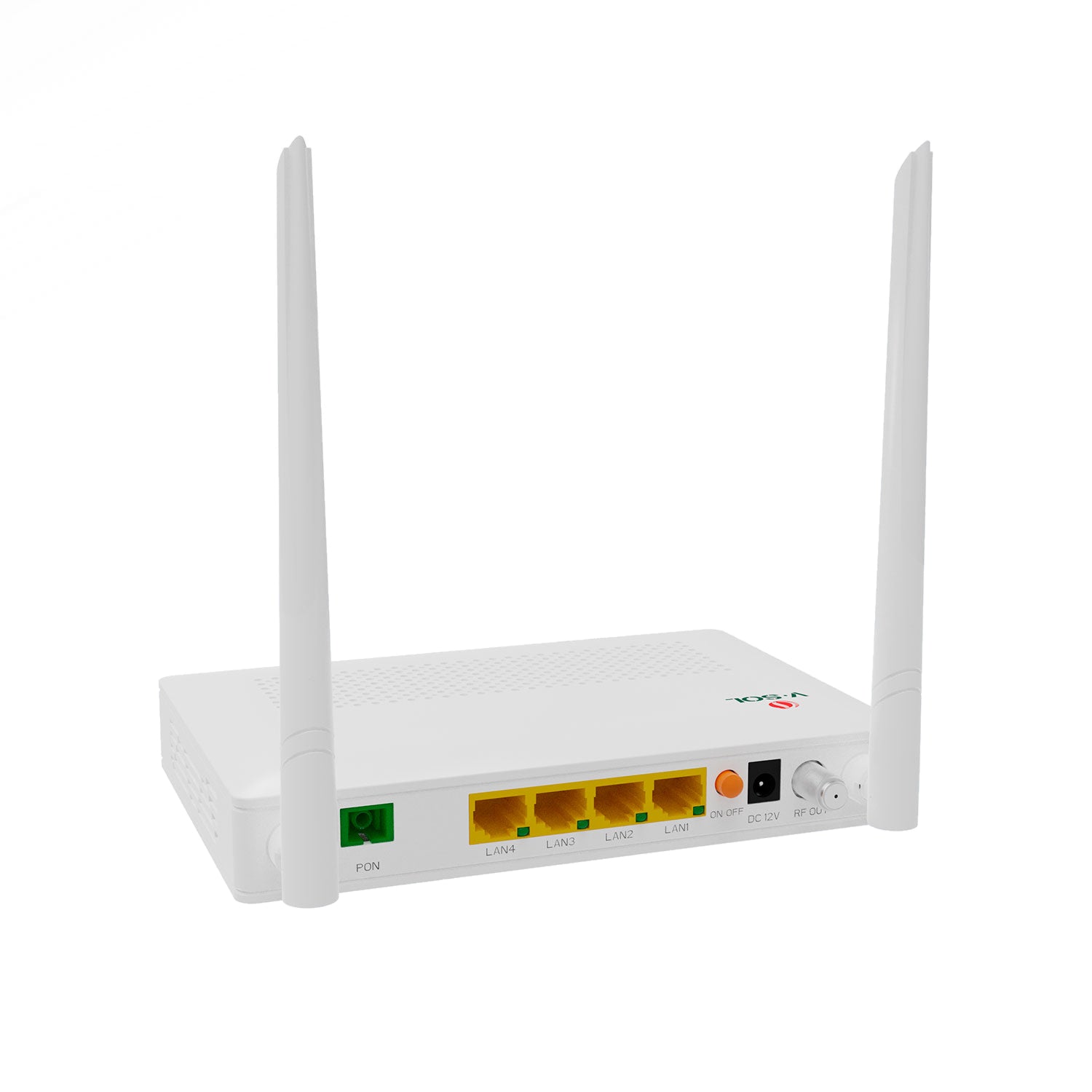

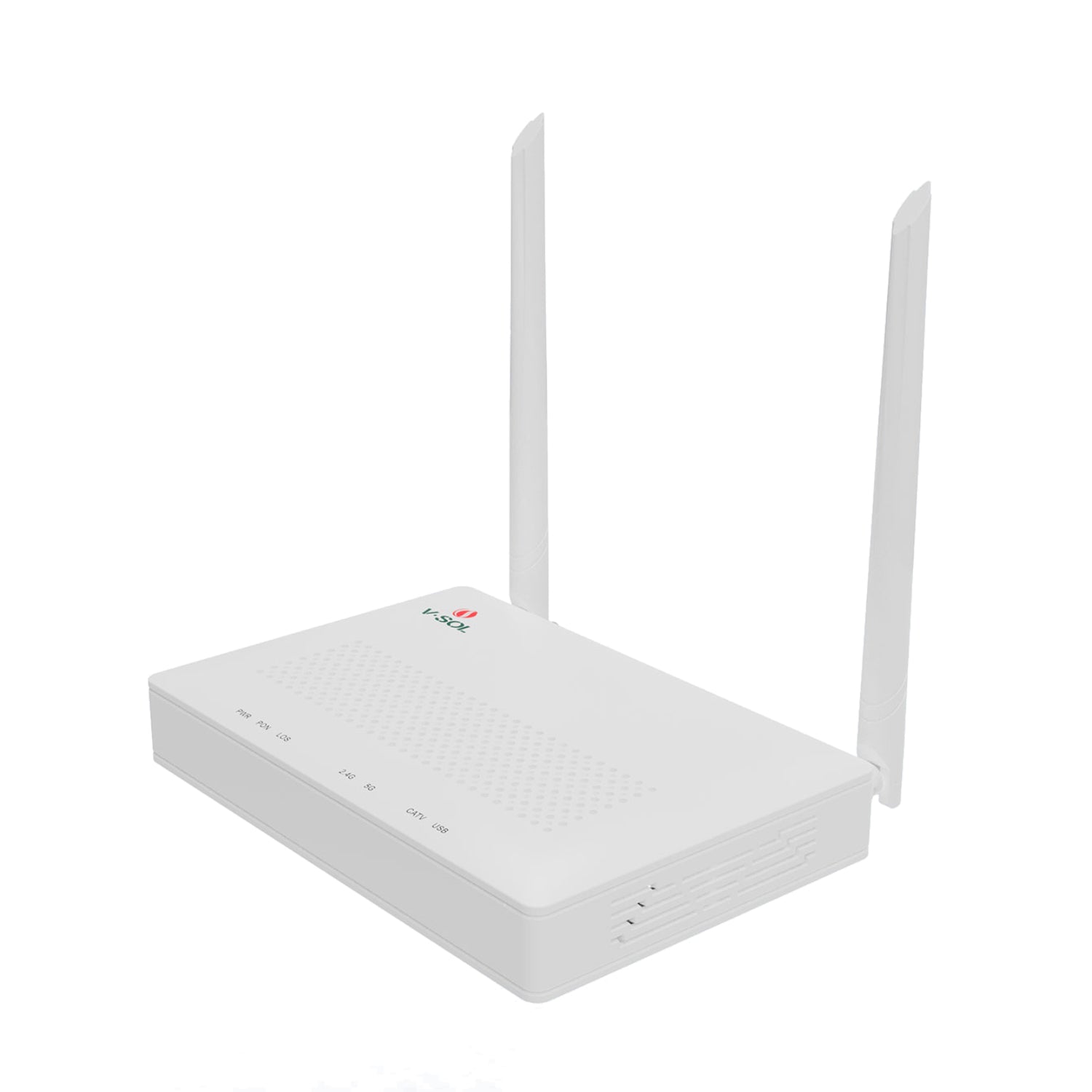

V-Sol 1XPON+4GE+USB 3.0+Wi-Fi 5 HGU ONT

Experience seamless connectivity with blazing fast speeds for your South African home or office | Powering multiple devices simultaneously with robust stability.

Quick Specs

• Connect multiple devices simultaneously with four Gigabit Ethernet ports.


• Enjoy fast and stable wireless connections with Wi-Fi 5 technology.


• Stream, game, and work without interruption thanks to reliable high-speed internet.


• Benefit from a robust and efficient network solution designed for modern demands.


• Simplify your setup with an all-in-one Home Gateway Unit.

Unleash your digital potential with the V-Sol HGU ONT

Designed for the discerning user in South Africa, this V-Sol 1xPON+4xGE+Wi-Fi 5 HGU ONT is more than just a network device; it is the foundation of your digital life. It caters to the demands of the modern home or small office where speed, stability, and the capacity to connect multiple devices are paramount. Whether you are a professional requiring uninterrupted video conferencing, a gamer demanding low latency, or a family juggling streaming services and online learning, this V-Sol router ensures your connection meets your needs. It is built for those who understand that a reliable network is not a luxury, but a necessity for productivity and entertainment.

Experience unparalleled speed and stability with this PON router

At its core, this V-Sol router boasts cutting-edge Wi-Fi 5 (802.11ac) technology, delivering dual-band wireless speeds of up to 1.167Gbps. This means smoother streaming, faster downloads, and a lag-free online experience, even when multiple devices are connected. The 2x2 MIMO configuration and multiple SSID support further enhance wireless performance, allowing for dedicated networks for guests or specific devices. Coupled with its PON (Passive Optical Network) interface, it provides a high-bandwidth, low-latency connection directly to your internet service provider, ensuring you receive the full speed of your plan without compromise. This PON router is engineered for peak performance.

Versatile connectivity for every need

The V-Sol HGU ONT is equipped with four Gigabit Ethernet (GE) ports, offering robust wired connectivity for devices that demand maximum speed and stability, such as desktop computers, gaming consoles, and network-attached storage (NAS). This versatility ensures that all your essential devices can be connected efficiently. Furthermore, the inclusion of a USB 3.0 port provides enhanced functionality, allowing for shared storage or media streaming directly through the device, expanding its utility beyond a simple router. For environments requiring it, an optional CATV interface is also available, integrating your entertainment services.

Engineered for performance and longevity

Durability and consistent performance are cornerstones of V-Sol’s design philosophy. This HGU ONT is built to withstand demanding operating conditions, with an operating temperature range of -10°C to +55°C and a non-condensing humidity range of 5% to 95%. These specifications ensure reliable operation whether installed in a climate-controlled office or a less regulated home environment. The efficient power management, consuming no more than 18W, further highlights its commitment to performance without unnecessary energy waste. The device is powered by a standard DC12V, 1.5A external AC-DC power adaptor, ensuring consistent and stable power delivery for your V-Sol router.

Your gateway to a connected future

In today's interconnected world, a high-performance network device is essential. The V-Sol 1xPON+4xGE+Wi-Fi 5 HGU ONT stands ready to meet and exceed those expectations. It is the ideal solution for South African users who demand reliability, speed, and the flexibility to adapt to their evolving connectivity needs. Invest in a network that empowers your productivity, enhances your entertainment, and keeps you seamlessly connected to what matters most with this superior V-Sol router.

FEATURES:

• Achieve exceptional internet speeds with the 1.167Gbps dual-band Wi-Fi 5 wireless interface for your V-Sol router.


• Support multiple high-demand devices simultaneously with four 1 Gigabit Ethernet ports for robust wired connections.


• Enhance your network capabilities with a versatile USB 3.0 port for shared storage or media.


• Benefit from a stable and reliable connection for streaming, gaming, and productivity, powered by PON technology


• Ensure uninterrupted operation in various environments with a wide operating temperature range of -10°C to +55°C.


• Optional CATV interface integration allows for unified service delivery in supported setups.

SPECIFICATIONS:

• PON interface:



  • 1XPON port (EPON PX20+ & GPON Class B+)


  • SC single mode, SC/APC connector


  • TX optical power: 0～+4dBm


  • RX sensitivity: -27dBm


  • Overload optical power: -3dBm (EPON) or -8dBm (GPON)


  • Transmission distance: 20KM


  • Wavelength: TX 1310nm, RX1490nm






• User interface:



  • 4*GE, Auto-negotiation, RJ45 ports


  • 1*USB 3.0






• WLAN interface:



  • Compliant with IEEE802.11b/g/n/ac


  • Wi-Fi:2.4GHz 、5.8GHz 2×2, 3dBi antenna, rate up to 1.167Gbps,Multiple SSID


  • TX power: 2.4GHz: 18dBm; 5GHz: 17dBm


  • RX power: 2.4GHz: HT40-MCS7 -71dBm; 5GHz: VHT80 MCS9 <-63dBm






• CATV interface



  • Optical receiving wavelength: 1550±10nm


  • Optical input range: +2～-18dBm


  • Optical reflection loss: ≥40dB


  • RF frequency range: 47～1000MHz


  • RF output impedance: 75Ω


  • RF output level and AGC range:


  • ≥81±2dBuv@+1～-10dBm


  • ≥79±2dBuv@ 0～-11dBm


  • ≥77±2dBuv@-1～-12dBm


  • ≥75±2dBuv@-2～-13dBm


  • ≥73±2dBuv@-3～-14dBm


  • ≥71±2dBuv@-4～-15dBm


  • MER: ≥32dB (-14dBm optical input)






• O&M:



  • OAM/OMCI, Telnet, WEB, TR069


  • Support full management of HGU functions by VSOL OLT






• Multicast:



  • IGMP v1/v2/v3, IGMP snooping


  • IGMP Proxy


  • MLD v1/v2 snooping


  • MLD Proxy






• Wireless:



  • Integrated 802.11b/g/n/ac


  • Authentication: WAP-PSK(TKIP)/ WAP2-PSK(AES)


  • Support Multiple SSID


  • Support hidden SSID


  • Support Mesh


  • Supports up to 64 maximum device connections






• QoS:



  • Support 4 queues


  • Support SP, WRR, 802.1P and DSCP






• L2:



  • Support 802.1D&802.1ad bridge,802.1Q VLAN






• L3/L4:



  • IPv4, IPv6 and IPv4/IPv6 dual stack


  • DHCP/PPPOE/Static


  • Static route, DHCP Server


  • NAT/DMZ/DDNS/Virtual Server






• Security:



  • Support Firewall


  • Support Mac filter Based on MAC or URL


  • Support ACL


  • Support Loop detection






• System Function:



  • Support NTP (Network Time Protocol)


  • Support Scheduled device restart


  • Support Ping and Traceroute diagnosis






• Operating condition:



  • Operating temp: -10 ~ +55°C


  • Operating humidity: 5 ~ 95% (non-condensing)






• Storing condition:



  • Storing temp: -40 ~ +70°C


  • Storing humidity: 5 ~ 95% (non-condensing)






• Power adapter: DC12V,1.5A, external AC-DC power adaptor


• Power supply: ≤18W


• Interface: 4GE + Wi-Fi 5 + USB 3.0 + CATV (optional)


• Indicators: PWR, LOS, PON, 2.4G, 5G, WAN, WPS, USB, CATV (optional), LAN1～4


• Product Dimensions: 18 x 12 x 3.2 cm


• Product Weight: 280g

WHAT'S IN THE BOX:

• V-Sol 1XPON+4GE+USB 3.0+Wi-Fi 5 HGU ONT - White x1
