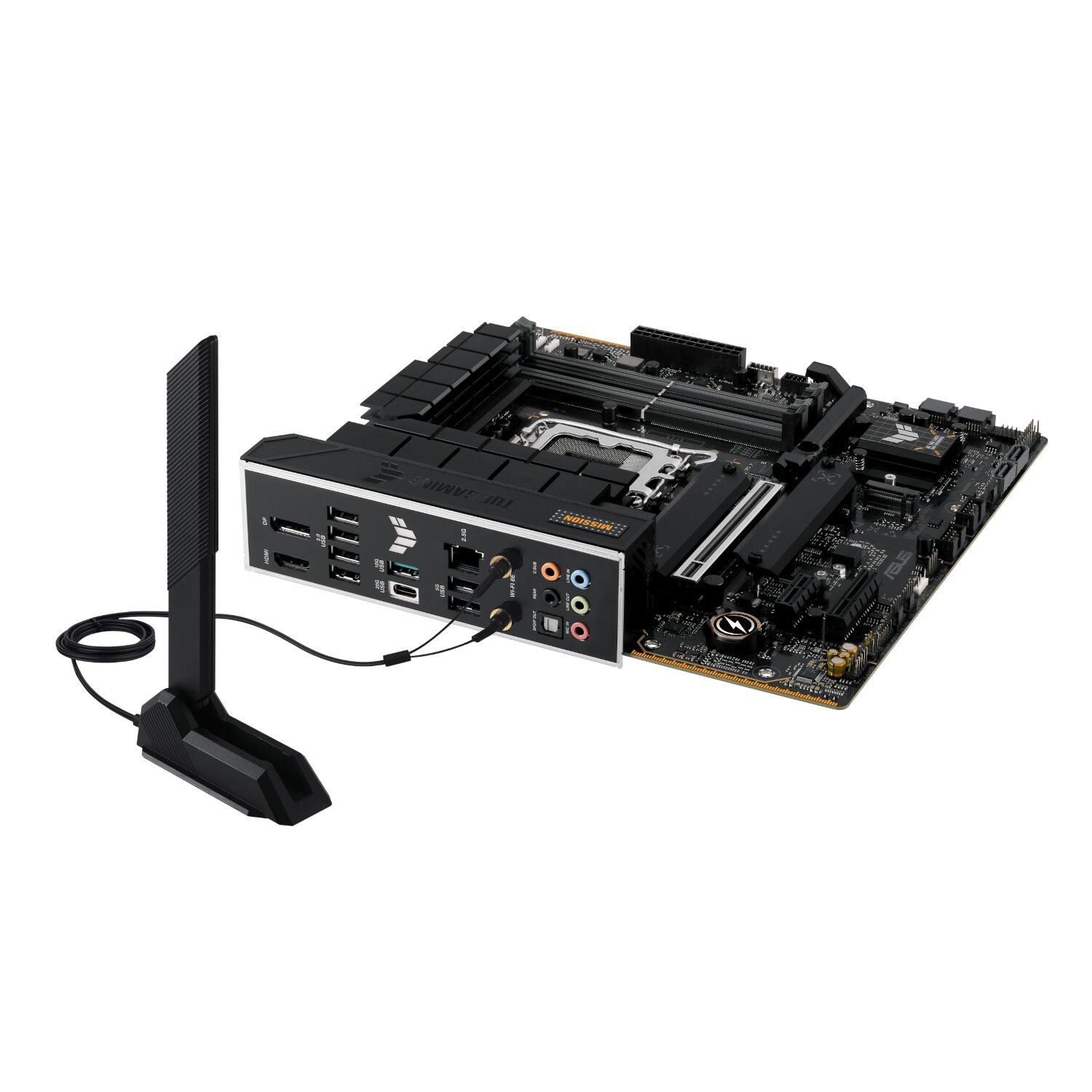

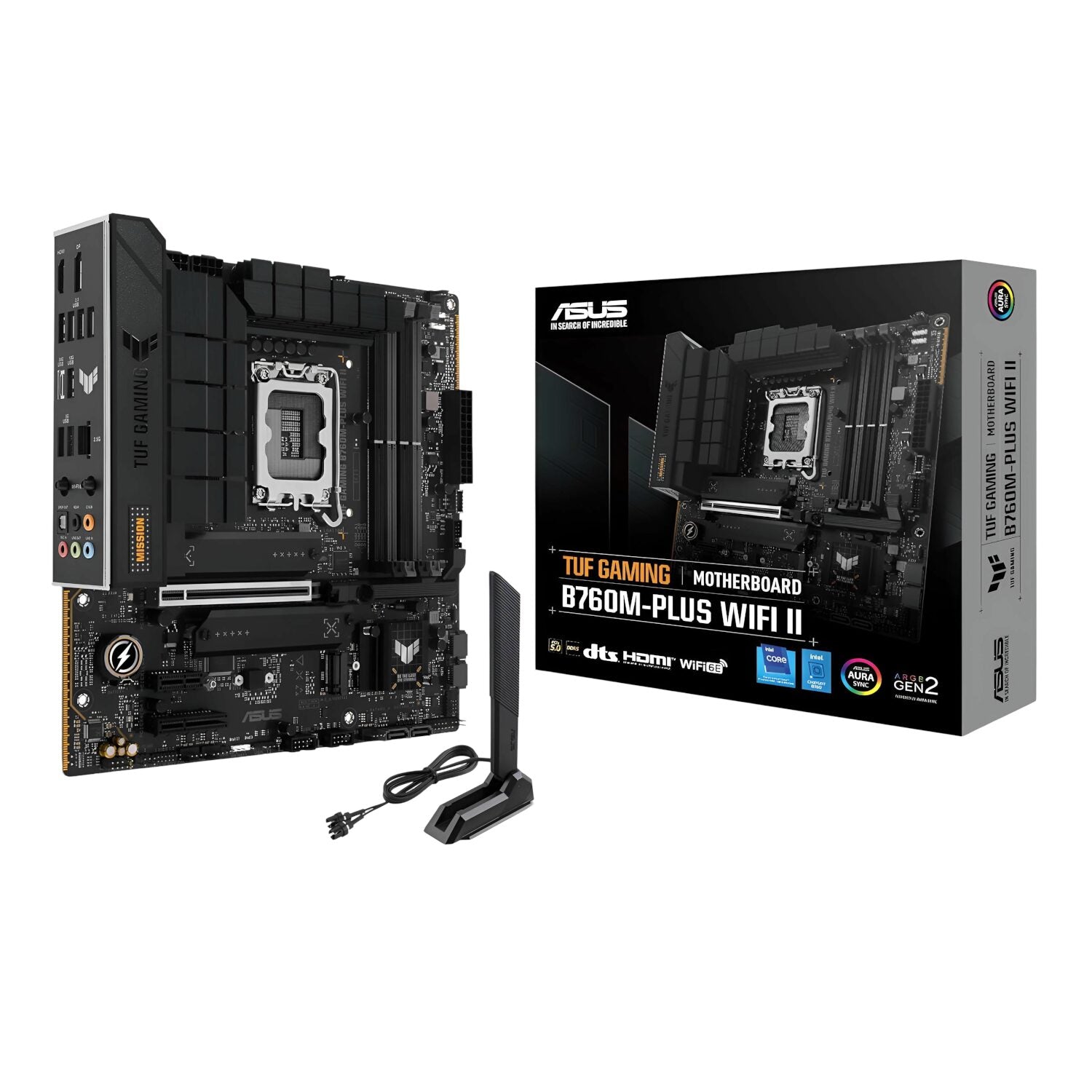

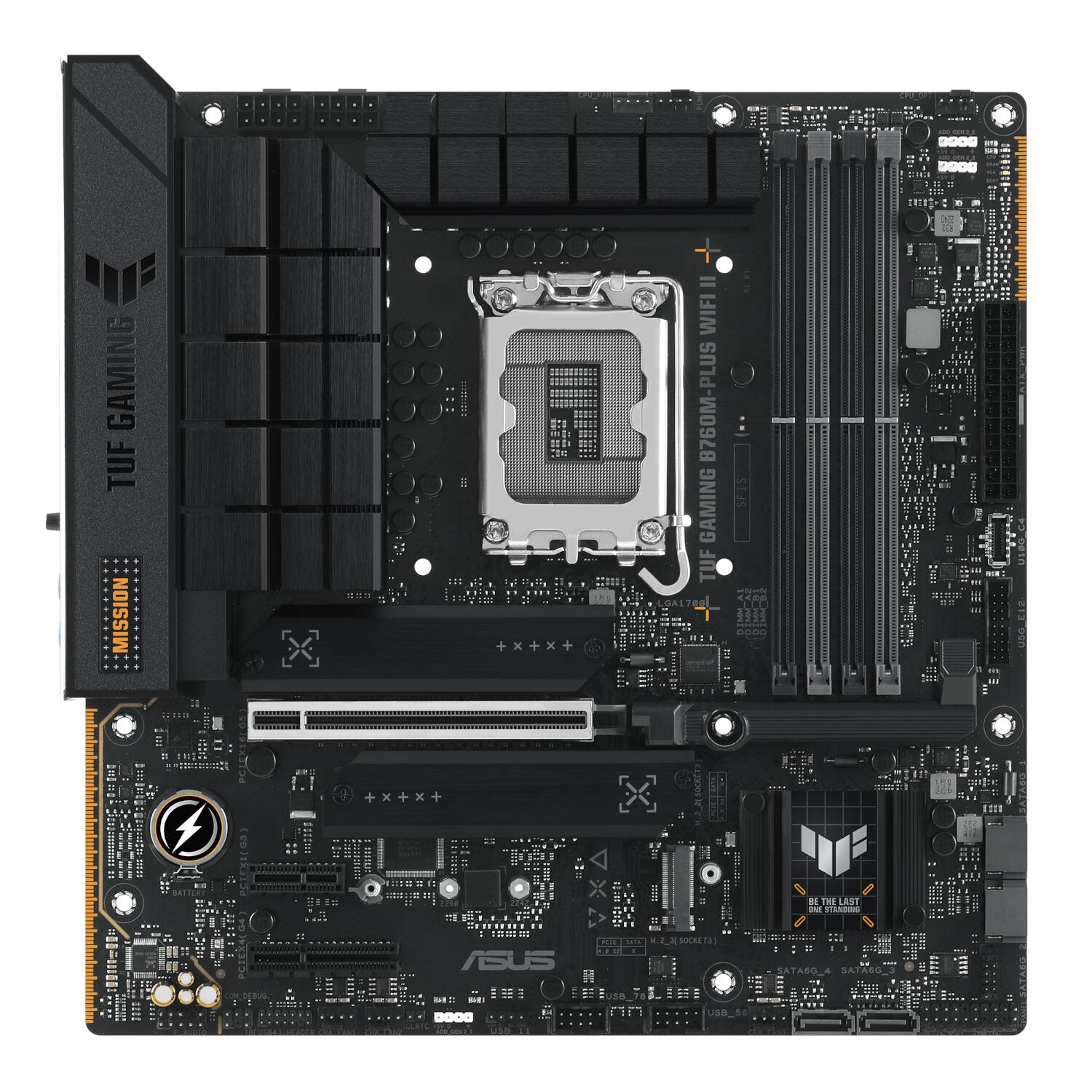

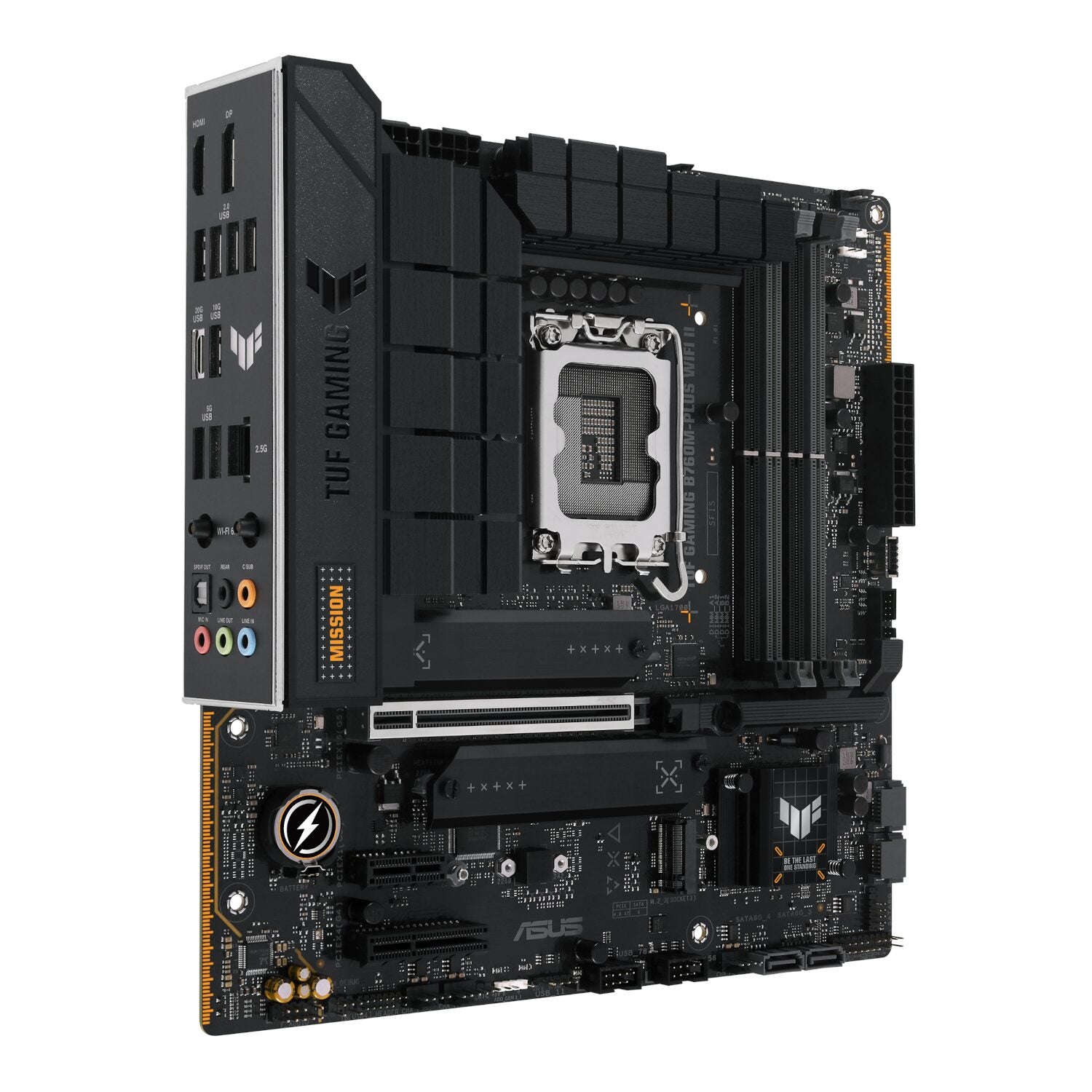

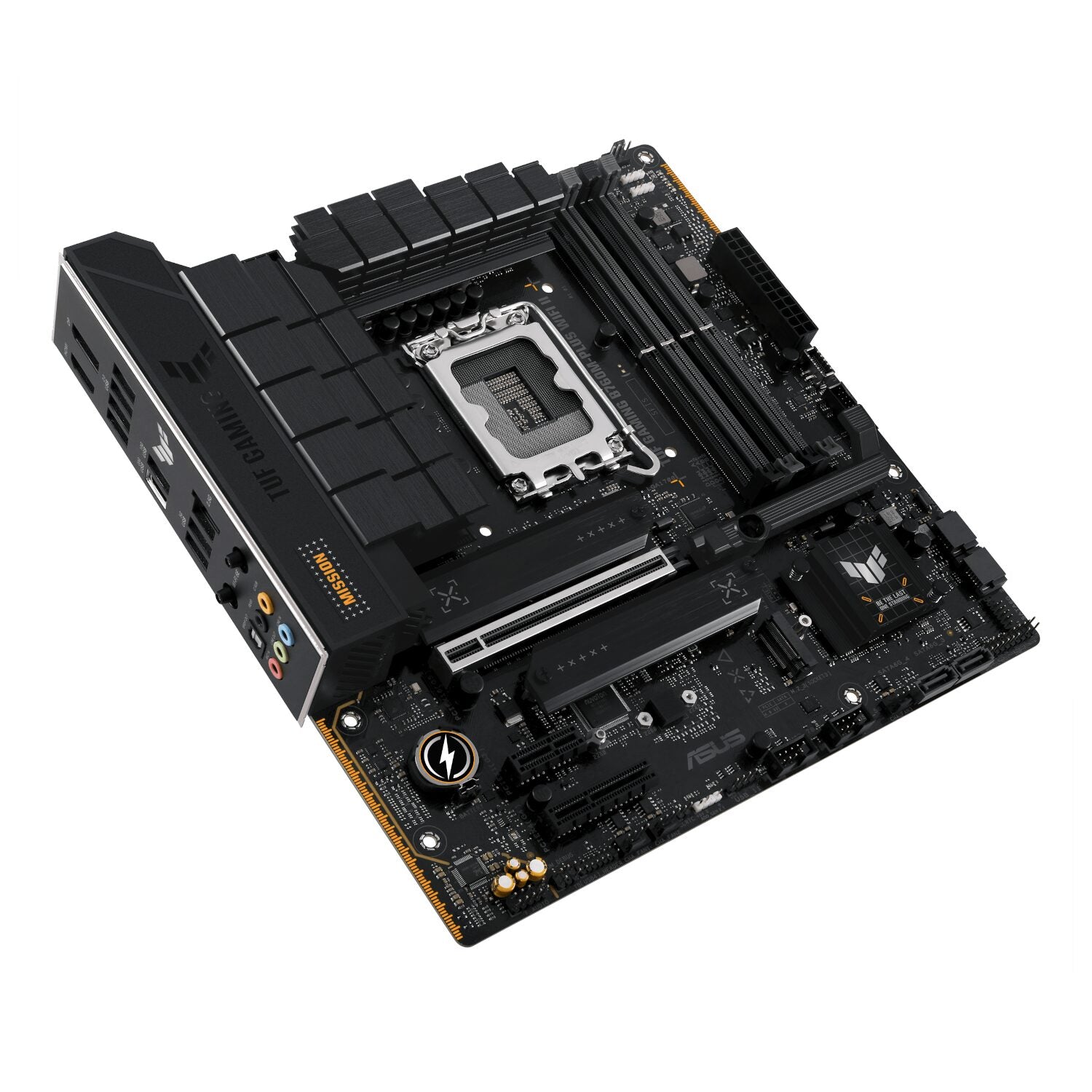

Asus TUF Gaming B760M-PLUS WIFI II - mATX Motherboard

ASUS

Asus TUF Gaming B760M-PLUS WIFI II - mATX Motherboard

SKU TUFGAMINGB760M-PLUSWIFIII
R 3,189.00 ZAR Was R 3,599.00

No VAT added at checkout.

Deal Ends 30 Nov Save R 410−11%

Save R 95.67 (3%) when you pay by EFT bank transfer. Choose Bank deposit at checkout and we'll apply the saving after you order.

or 6 × R 531.50 interest-free Stitch Payflex
or
with mobicred (interest and fees apply)
In stock — 17 available
  • Registered SA company (Reg. 2025/494434/07)
  • Brand-new stock from established SA distributors
  • Secure checkout
Ways to pay Stitch Payflexmobicred

Pay in interest-free instalments

R 1,594.50 × 2 Total R 3,189.00, no interest
  • Stitch Stitch Pay LaterMonthly, first payment at checkout. Choose it at checkout.2 × R 1,594.50
  • PayflexPayflexEvery 2 weeks, first payment at checkout. Choose Payfast at checkout, then Payflex.2 × R 1,594.50
R 1,063.00 × 3 Total R 3,189.00, no interest
  • Stitch Stitch Pay LaterMonthly, first payment at checkout. Choose it at checkout.3 × R 1,063.00
  • PayflexPayflexEvery 2 weeks, first payment at checkout. Choose Payfast at checkout, then Payflex.3 × R 1,063.00
R 797.25 × 4 Total R 3,189.00, no interest
  • Stitch Stitch Pay LaterMonthly, first payment at checkout. Choose it at checkout.4 × R 797.25
  • PayflexPayflexEvery 2 weeks, first payment at checkout. Choose Payfast at checkout, then Payflex.4 × R 797.25
R 531.50 × 6 Total R 3,189.00, no interest
  • Stitch Stitch Pay LaterMonthly, first payment at checkout. Choose it at checkout.6 × R 531.50
mobicred Mobicred credit accountPay monthly. Interest and fees apply; Mobicred shows the full cost before you accept. Choose Payfast at checkout, then Mobicred. Monthly amount shown under the price
Pay in fullCard, Apple Pay, Google Pay, Capitec Pay, Instant EFT or Zapper Visa Mastercard Apple Pay Google Pay Capitec PayPayFast Instant EFTZapper

Instalments are interest-free if you pay on time and are subject to the provider's approval and terms. Any delivery fee is added at checkout. The last instalment may differ by a few cents.

  • Free deliveryThis product qualifies, anywhere in South Africa
  • 2–5 business daysDelivery, nationwide
  • 36 months warrantyIncluded with this product
  • 7-day returnsChange of mind. Refund policy

Overview

About this product

The Asus TUF Gaming B760M-PLUS WIFI II is a robust micro-ATX Motherboard that delivers exceptional durability, advanced performance, and rock-solid stability for 14th,13th and 12th Gen Intel® Core™ processors. Engineered with military-grade components and TUF-tested reliability, it caters to competitive gamers, PC builders, and performance-driven users seeking a balance between next-gen features and dependable construction.


At its core, the Asus TUF Gaming B760M-PLUS Motherboard features a 12+1 DrMOS power stage VRM architecture, enlarged VRM heatsinks, and a six-layer PCB design to ensure stable power delivery under high-load conditions. It supports DDR5 memory for faster data throughput, lower power consumption, and superior multitasking capabilities. PCIe® 5.0 support unlocks future-ready bandwidth for the latest GPUs, while dual PCIe 4.0 M.2 slots with M.2 Q-Latch simplify high-speed SSD installation.


Seamless connectivity is a cornerstone with integrated Wi-Fi 6E ensuring low-latency wireless networking across the 6 GHz spectrum, while the Intel® 2.5 Gb Ethernet port offers ultra-fast wired connections. Comprehensive cooling controls include hybrid fan headers, AI-powered Fan Xpert 2+ software, and precision thermal monitoring to maintain optimal system performance.


Built for DIY ease, it includes a pre-mounted I/O shield, Q-LED diagnostic indicators, and ASUS SafeSlot Core+ for reinforced GPU retention. The rugged design aesthetic is complemented by support for ASUS Aura Sync RGB lighting, allowing users to personalise builds with unified lighting control. Whether you’re building a compact gaming rig or a high-efficiency workstation, the Asus TUF Gaming B760M-PLUS WIFI II - mATX Motherboard delivers a future-proof platform tailored for speed, stability, and endurance.


FEATURES:



  • Intel® LGA1700 socket supports 14h & 13th Gen Intel® Core™, 12th Core, Pentium® Gold, and Celeron® processors

  • 12+1 DrMOS power stages and durable components ensure reliable, stable performance for demanding workloads.

  • DDR5 memory supports advanced multitasking and gaming responsiveness

  • Next-gen PCIe® 5.0 support provides ultra-high bandwidth for the latest GPUs, enhancing visual performance and data throughput

  • Dual PCIe 4.0 M.2 slots support NVMe SSDs for ultra-fast game and application loading times

  • Wi-Fi 6E connectivity delivers high-speed, low-latency wireless networking across the 6 GHz band

  • Intel® 2.5Gb Ethernet provides high-speed wired networking ideal for streaming, competitive gaming, and heavy data transfers

  • Enlarged VRM heatsinks, hybrid fan headers, and Fan Xpert 2+ software maintain thermal efficiency under load

  • Military-grade components and six-layer PCB ensure long-term reliability and enhanced power integrity

  • DIY-friendly design includes pre-mounted I/O shield, M.2 Q-Latch, SafeSlot Core+, and Q-LED indicators

  • ASUS Aura Sync RGB support offers customisable lighting synchronisation with compatible components

  • Armoury Crate centralised software for performance tuning, RGB control, and real-time system monitoring


SPECIFICATIONS:



  • CPU:

  • Chipset: Intel® B760 Chipset

  • CPU Compatibility: Supports Intel® 14th,13th & 12th Gen Core™, Pentium® Gold and Celeron® Processors

  • CPU Socket: LGA1700

  • Memory Support:

    • 4 x DIMM slots, up to 192GB total

    • DDR5 7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz

    • Dual-channel architecture

    • Intel® Extreme Memory Profile (XMP) support



  • Graphics:

    • 1 x DisplayPort

    • 1 x HDMI™port



  • Expansion Slots:

    • Intel® CoreTM Processors (14th & 13th & 12th Gen)*

      • 1 x PCIe 5.0 x16 slot



    • Intel® B760 Chipset

      • 1 x PCIe 4.0 x4 slot

      • 1 x PCIe 3.0 x1 slot





  • Storage:

  • Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

  • Intel® CoreTM Processors (14th & 13th & 12th Gen)

    • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)



  • Intel® B760 Chipset

    • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

    • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)

    • 4 x SATA 6Gb/s ports



  • Ethernet: 1 x Realtek 2.5Gb ethernet TUF LANGuard

  • Wireless & Bluetooth:

    • 2x2 Wi-Fi 6E (802.11ax)

    • Bluetooth® v5.3 (2.4/5/6GHz)



  • USB:

    • Rear USB (Total 8 ports)

      • 1 x USB 20Gbps port (1 x USB Type-C®)

      • 1 x USB 10Gbps port (1 x Type-A)

      • 2 x USB 5Gbps ports (2 x Type-A)

      • 4 x USB 2.0 ports (4 x Type-A)



    • Front USB (Total 8 ports)

      • 1 x USB 10Gbps connector (supports USB Type-C®)

      • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

      • 3 x USB 2.0 headers support 5 additional USB 2.0 ports





  • Audio:

    • Realtek 7.1 Surround Sound High Definition Audio CODEC

      • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

      • Supports up to 24-bit/192 kHz playback



    • Audio Features

      • Audio Shielding

      • Rear optical S/PDIF out port

      • Premium audio capacitors

      • Dedicated audio PCB layers

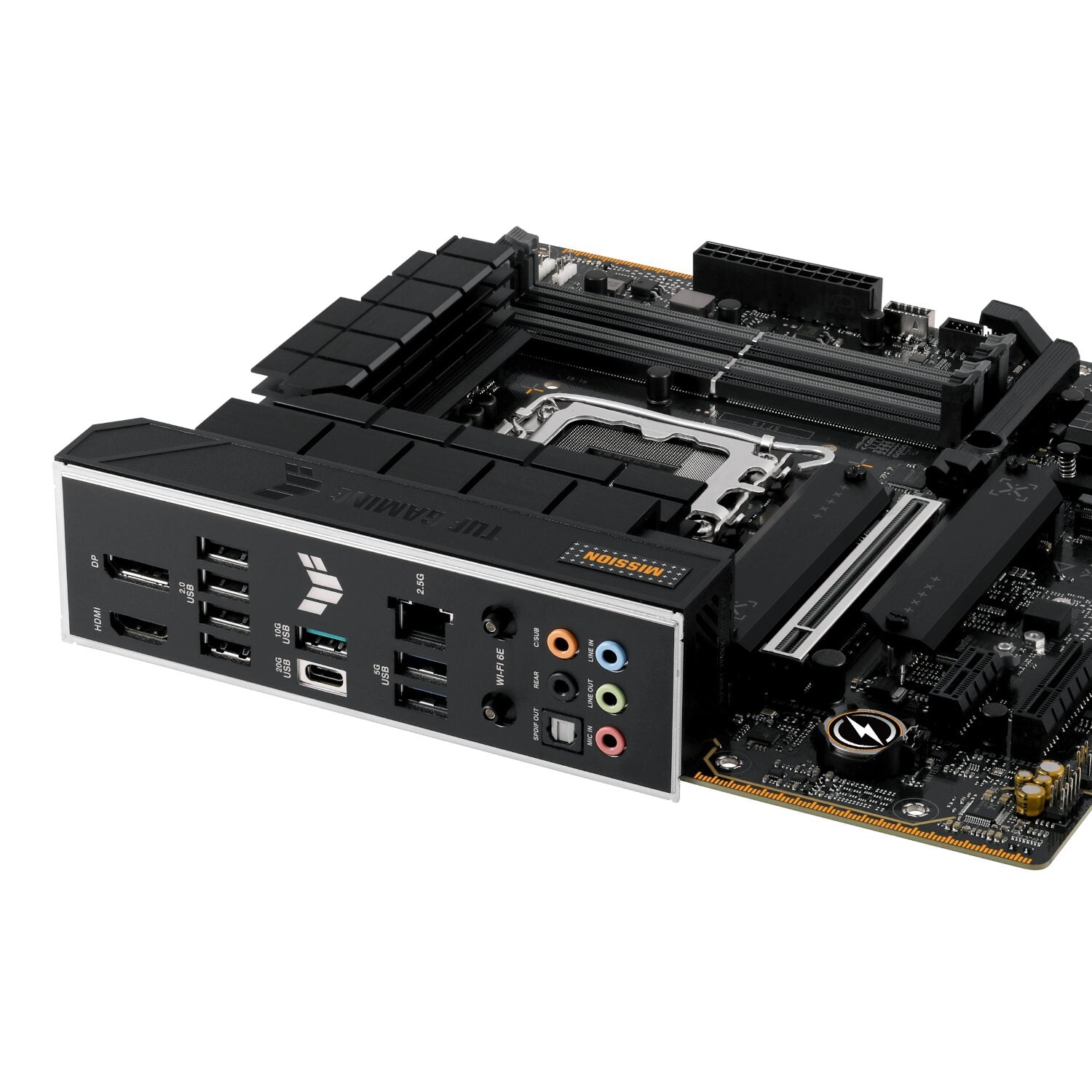

  • Back Panel I/O Ports:

    • 1 x USB 20Gbps port (1 x USB Type-C®)

    • 1 x USB 10Gbps port (1 x Type-A)

    • 2 x USB 5Gbps ports (2 x Type-A)

    • 4 x USB 2.0 ports (4 x Type-A)

    • 1 x DisplayPort

    • 1 x HDMI™ port

    • 1 x Wi-Fi Module

    • 1 x Realtek 2.5Gb Ethernet port

    • 5 x Audio jacks

    • 1 x Optical S/PDIF out port



  • Internal I/O Connectors:

    • I/O Connectors  Fan and Cooling related

      • 1 x 4-pin CPU Fan header

      • 1 x 4-pin CPU OPT Fan header

      • 1 x 4-pin AIO Pump header

      • 3 x 4-pin Chassis Fan headers



    • Power related

      • 1 x 24-pin Main Power connector

      • 2 x 8-pin +12V Power connectors



    • Storage related

      • 3 x M.2 slots (Key M)

      • 4 x SATA 6Gb/s ports



    • USB

      • 1 x USB 10Gbps connector (supports USB Type-C® )

      • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

      • 3 x USB 2.0 headers support 5 additional USB 2.0 ports



    • Miscellaneous

      • 3 x Addressable Gen 2 headers

      • 1 x Clear CMOS header

      • 1 x Front Panel Audio header (AAFP)

      • 1 x 20-3 pin System Panel header with Chassis intrude function

      • 1 x Thunderbolt™ (USB4®) header





  • Special Features:

    • ASUS TUF PROTECTION

      • DIGI+ VRM (- Digital power design with DrMOS)

      • ESD Guards

      • TUF LANGuard

      • Overvoltage Protection

      • SafeSlot Core+

      • Stainless-Steel Back I/O



    • ASUS Q-Design

      • M.2 Q-Latch

      • PCIe Slot Q-Release

      • Q-Antenna

      • Q-DIMM

      • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot     Device [yellow green])



    • ASUS Thermal Solution

      • M.2 heatsinks

      • VRM heatsink design



    • ASUS EZ DIY

      • CPU Socket lever protector

      • ProCool

      • Pre-mounted I/O shield

      • SafeDIMM



    • AURA Sync

      • Addressable Gen 2 headers





  • Software Features:

    • ASUS Exclusive Software

    • Armoury Crate

      • AURA Creator

      • AURA Sync

      • Fan Xpert 2+

      • Power Saving

      • Two-Way AI Noise Cancellation



    • AI Suite 3

      • DIGI+ VRM

      • PC Cleaner



    • TUF GAMING CPU-Z

    • DTS Audio Processing

    • MyASUS

    • Norton 360 for Gamers (60 Days Free Trial)

    • WinRAR (40 Days Free Trial)

    • UEFI BIOS

    • ASUS EZ DIY

      • ASUS CrashFree BIOS 3

      • ASUS EZ Flash 3

      • ASUS UEFI BIOS EZ Mode





  • BIOS: 128 Mb Flash ROM, UEFI AMI BIOS

  • Manageability: WOL by PME, PXE

  • Operating System: Windows® 11, Windows® 10 64-bit

  • Form Factor:

  • Form Factor: mATX (micro-ATX)

    • Dimensions: (24.4 x 24.4 cm)




WHAT'S IN THE BOX:



  • Asus TUF Gaming B760M-PLUS WIFI II - mATX Motherboard x1

  • SATA 6Gb/s cables  x2

  • ASUS Q-Antenna x1

  • M.2 Rubber Package x1

  • TUF Gaming sticker x1

  • Screw packages for M.2 SSD x2

  • TUF Certification card x1

  • User guide x1
