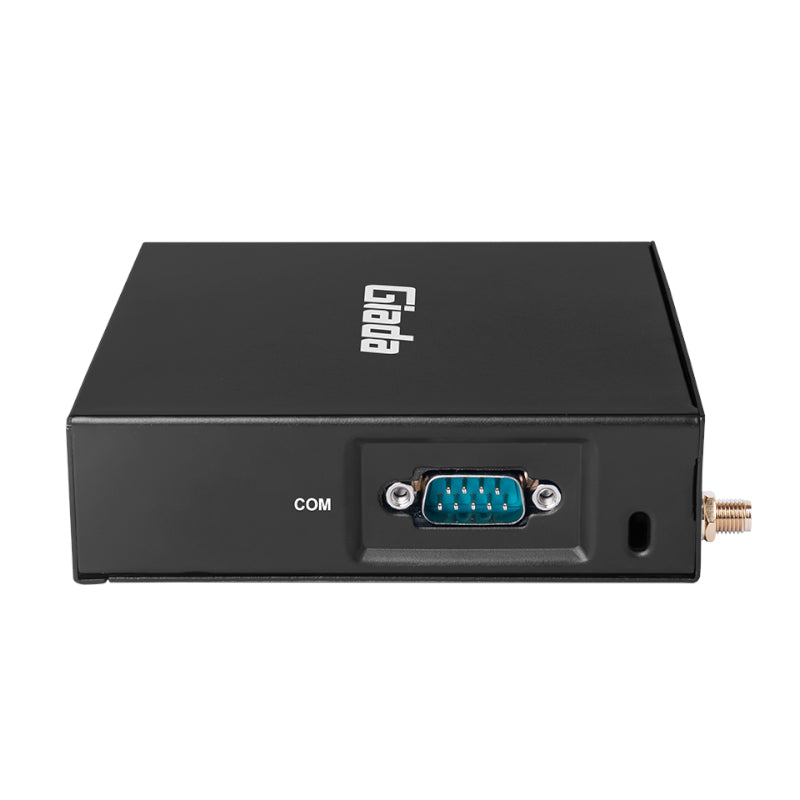

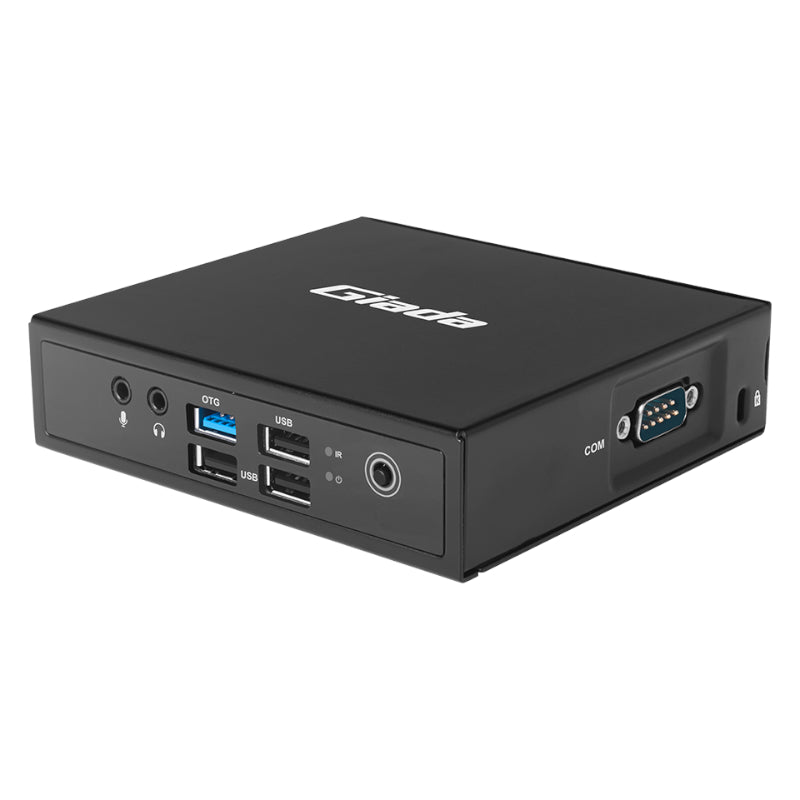

Giada DN74 RK3399 Fanless Android Signage Player | 4GB LPDDR4 RAM | 32GB eMMC | Mali-T860MP4 GPU | Dual HDMI | Android 7.1

The Giada DN74 ARM Fanless Android Signage Player utilises an RK3399 Dual-core ARM Cortex-A72 and a Quad-core ARM Cortex-A53 CPU. It has onboard memory and eMMC storage. Its dual HDMI outputs support two displays, with one reaching 4K resolutions and the other running at a resolution of 2K. Giada brings all of these components together with the Android 7.1 operation system, making it a suitable entry-level signage player for Android environments.

Features:

• Rockchip RK3399


• Onboard 4GB LPDDR4 memory


• Two HDMI ports, one supporting 4K and the other 2K


• Onboard eMMC storage of 32GB


• One USB3.0 port and three  USB2.0 ports


•  RS232 Serial Port


• RJ45 Network connection


• Mini-PCIe slot for 3G/4G connectivity


• SIM Card slot

Specifications:

• Processor



  • CPU: Rockchip RK3399


  • Frequency: Up to 1.8GHz


  • Processing Units: 2 Cores Cortex-A72 & 4 Cores Cortex-A53


  • TDP: 6W






• Memory



  • Type: LPDDR4


  • Socket: Onboard


  • Size: 4GB






• Graphics



  • GPU: Mali-T860MP4


  • Graphic Engine: OpenGL ES1.1/2.0/3.0/3.1, OpenCL, Support AFBC (ARM Frame Neck Scarfer Compression)


  • Video Decoding Capability: 4K VP9 decoders, 4K 10bits H.265 video decoders, 1080P VC-1, MPEG-1/2/4, VP8 video decoders






• Display



  • HDMI: 1x HDMI (Max. 4K@60Hz) | 1x HDMI (Max. 2K@30Hz)






• Network



  • Controller: 1 x Pef7071 PHY


  • Interface: 1x RJ45






• I/O



  • USB: 1 x USB3.2 Gen1 (OTG), 3 x USB2.0


  • Serial Port: 2x RS232


  • Audio: 1x MIC-IN, 1x AUDIO-OUT


  • Mini-PCIe: 1x Full-size Mini-PCIe for 3G/4G


  • SIM: 1x SIM Slot


  • WiFi on Board: 1x WiFi Module Onboard (WIFI 5GHz, IEEE802.11 a/b/g/ac)






• Storage



  • eMMC: 32GB






• Power



  • Power Type: DC-IN


  • Power Adapter: 12V/2A






• Environment



  • Operating Temperature: 0℃ ~ 40℃ at 0.7m/s Air Flow


  • Relative Humidity: 95%@40℃ (non-condensing)






• Supported Operating Systems: Android 7.1


• Mounting: Desk/Wall Mounting and VESA


• Certification: CE, FCC


• Dimensions: 11.66 x 10.74 x 3 cm

What’s in The Box:

• Giada DN74 ARM RK3399 Fanless Android Signage Player 32GB x1


• AC Power Adapter x1


• WiFi Antenna x1
